MFZ9-90YDT Electromagnet for waterproof on-off valve

As the power component of hydraulic electromagnetic directional valve, this series of electromagnets are matched with six-way and ten way threaded electromagnetic directional valve. The power connection mode of electromagnet adopts Dechi type or Anpu type, with better waterproof performance。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
MFZ9-90YDT Electromagnet for waterproof on-off valve
Main technical parameters

model Series Rated voltage(V) Rated suction(N) Rated stroke(mm) Full stroke(mm) Power consumption(W) Withstand static oil pressure(MPa) Operating frequency(T/h) Coil bore diameter(mm)
MFZ9-90YDT 油研型
12/24
≥90
4
≥9
≤36
24
12000
φ31.4
MFZ12-37YDT 力士乐型
12/24
≥32
3
≥6
≤20
19
12000
φ23
MFZ12-90YDT 力士乐型
12/24
≥90
4
≥9
≤36
24
12000
φ31.4

Stroke force characteristic curve
MFZ9-90YDT Electromagnet for waterproof on-off valve

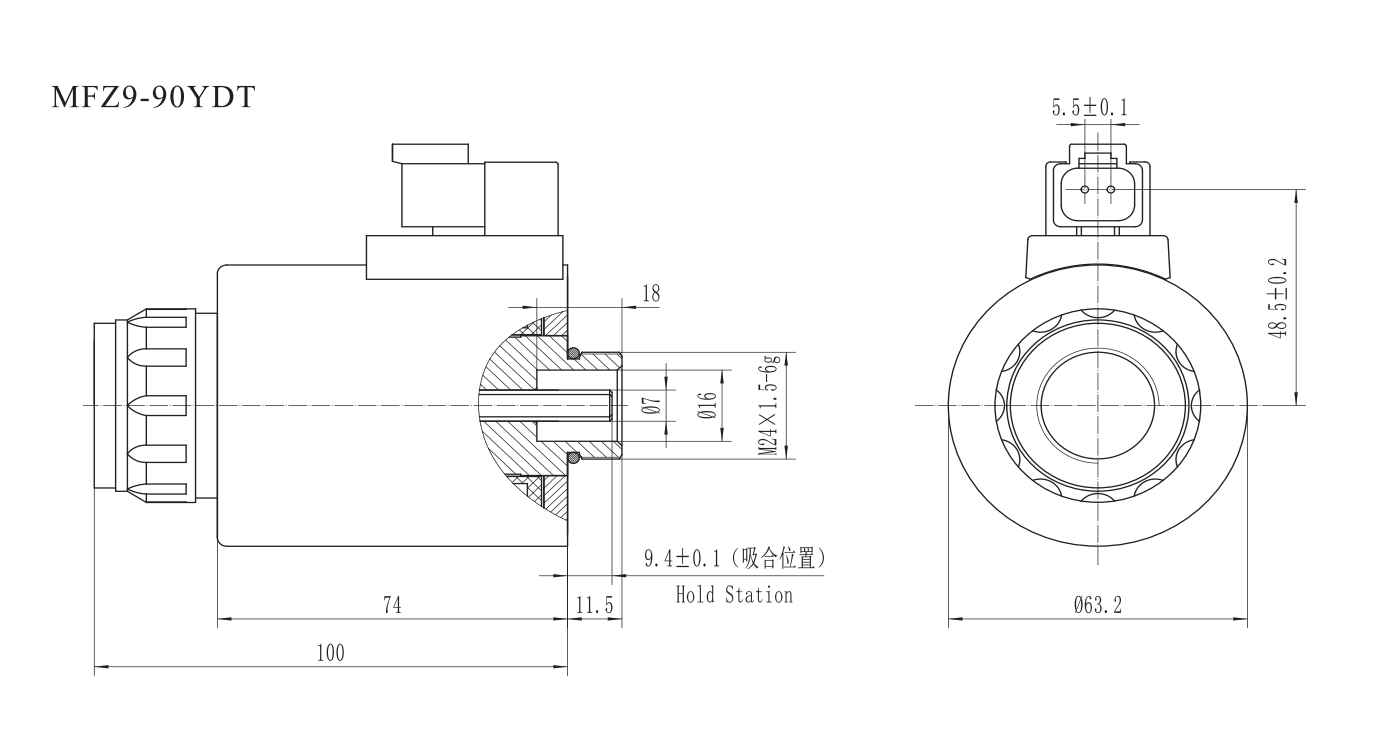

Outline and installation dimensions
MFZ9-90YDT Electromagnet for waterproof on-off valve
