MFZ9-37YDT Electromagnet for waterproof on-off valve

As the power component of hydraulic electromagnetic directional valve, this series of electromagnets are matched with six-way and ten way threaded electromagnetic directional valve. The power connection mode of electromagnet adopts Dechi type or Anpu type, with better waterproof performance。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
MFZ9-37YDT Electromagnet for waterproof on-off valve
MFZ9-37YDT Electromagnet for waterproof on-off valve
MFZ9-37YDT Electromagnet for waterproof on-off valve
Main technical parameters

model Series Rated voltage(V) Rated suction(N) Rated stroke(mm) Full stroke(mm) Power consumption(W) Withstand static oil pressure(MPa) Operating frequency(T/h) Coil bore diameter(mm)
MFZ9-37YDT 油研型
12/24
≥37
2.8
≥6
≤30
19
12000
φ23
MFZ9-90YDT 油研型
12/24
≥90
4
≥9
≤36
24
12000
φ31.4
MFZ12-37YDT 力士乐型
12/24
≥32
3
≥6
≤20
19
12000
φ23
MFZ12-90YDT 力士乐型
12/24
≥90
4
≥9
≤36
24
12000
φ31.4

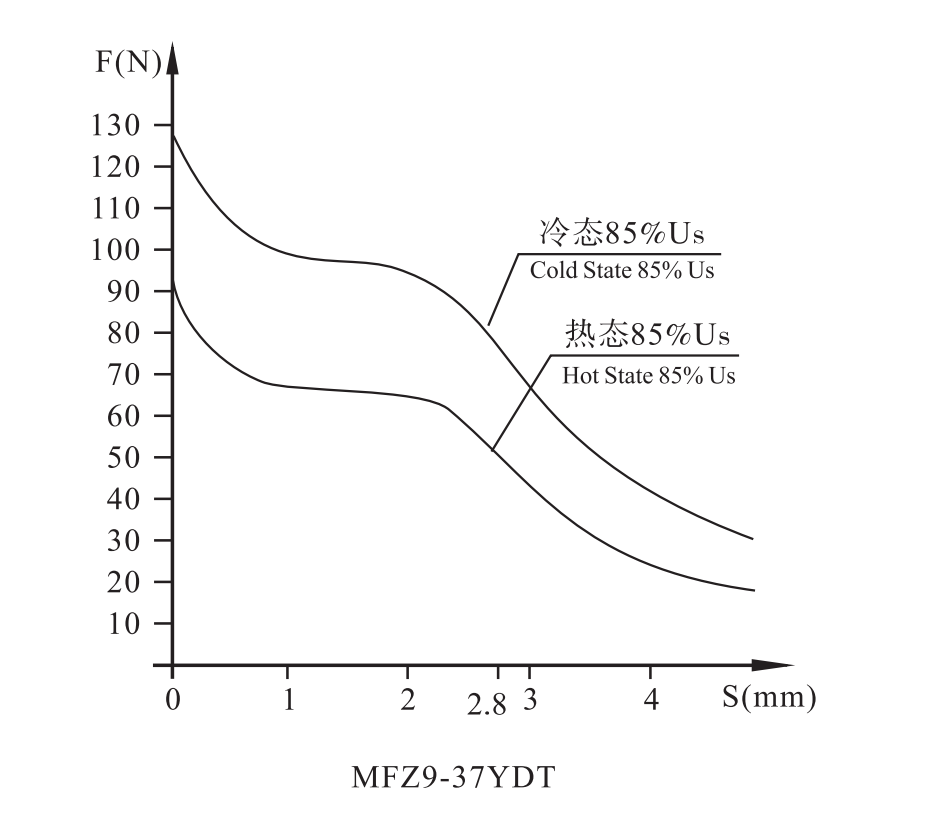

Stroke force characteristic curve
MFZ9-37YDT Electromagnet for waterproof on-off valve
MFZ9-37YDT Electromagnet for waterproof on-off valve
MFZ9-37YDT Electromagnet for waterproof on-off valve

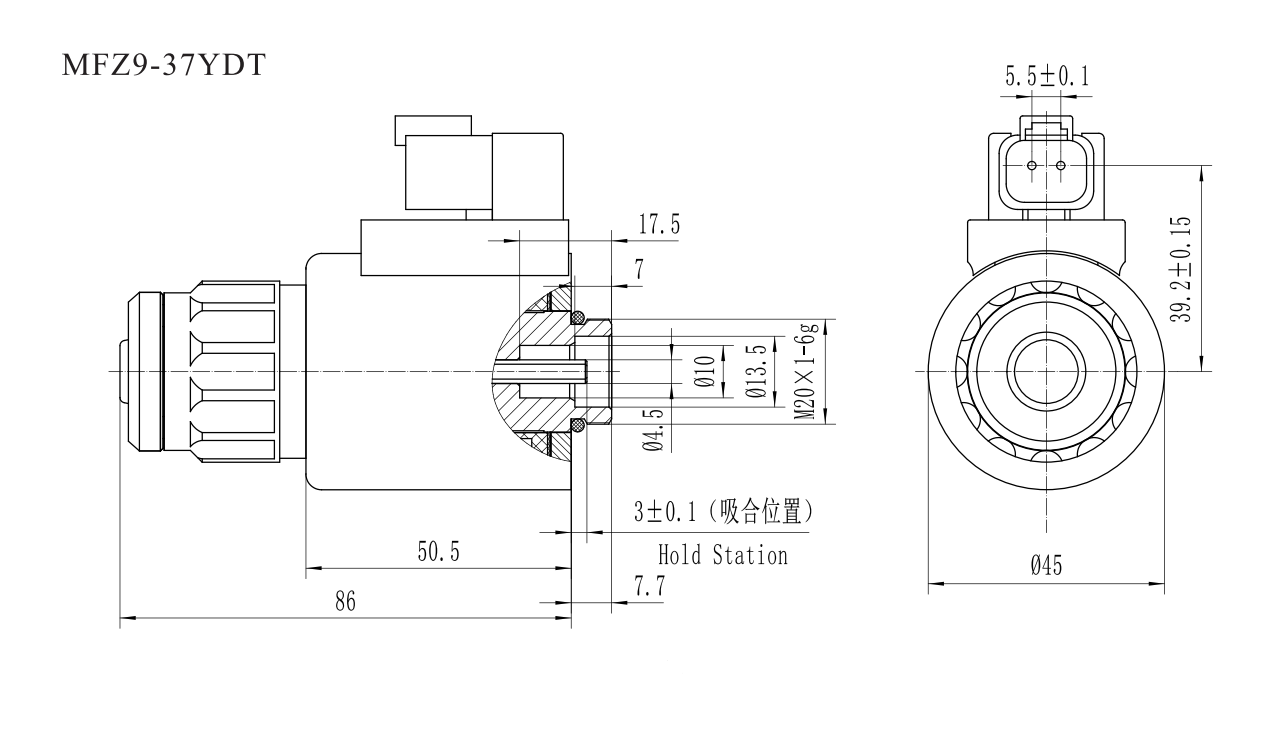

Outline and installation dimensions
MFZ9-37YDT Electromagnet for waterproof on-off valve
MFZ9-37YDT Electromagnet for waterproof on-off valve
MFZ9-37YDT Electromagnet for waterproof on-off valve
Anyang Hyoiat electromagnet Manufacturing Co., Ltd
Founded in
1998
Y
A manufacturer of electromagnets for hydraulic valves integrating R & D, production and sales
Anyang Hyoiat electromagnet Manufacturing Co., Ltd
It has passed ISO9001 quality management system certification, CE product safety certification, class I and class II explosion-proof product certification, and has a number of scientific and technological achievements
It has various modern processing and manufacturing equipment and testing instruments, such as high-precision CNC machine group, full-automatic winding machine, robot copper welding machine and so on
Products are used in a variety of industries
It is widely used in automatic control equipment in plastic machinery, agricultural machinery, engineering machinery, metallurgical machinery, CNC machine tools, mining and chemical industry, automobile, military industry, aerospace, water conservancy, post and telecommunications and other fields
