MFJ12-54YC Solenoid for screw connected valve

This series of electromagnets is matched with the electromagnetic directional valve with six and ten diameter threaded connection of Rexroth。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
MFJ12-54YC Solenoid for screw connected valve
Main technical parameters

Model rated voltage(V) Power frequency(Hz) Rated suction(N) Rated stroke(mm) Full stroke(mm) Starting voltammetry(VA) Holding voltammetry(VA) Power consumption(W) Withstand static oil pressure(MPa) Operating frequency(T/h) Coil bore diameter(mm)
MFJ12-54YC 110/220
50
≥54
4
≥9
≤308
≤78
-
24
12000
φ26
MFZ12-22YC 12/24
110/220
-
≥22
2.8
≥6.1
-
-
≤30
19
12000
φ16
MFZ12-25YC 12/24
110/220
-
≥25
2.8
≥6.1
-
-
≤26
19
12000
φ23
MFZ12-37YC 12/24
110/220
-
≥37
2.8
≥6.1
-
-
≤30
19
12000
φ23
MFZ12A-37YC 12/24
110/220
-
≥37
2.8
≥6.1
-
-
≤30
19
12000
φ23
MFB12-37YC 110/220
-
≥37
2.8
≥6.1
-
-
≤30
19
12000
φ23
MFZ12-90YC 12/24
110/220
-
≥90
4
≥9
-
-
≤36
24
12000
φ31.4
MFZ12A-90YC 12/24
110/220
-
≥90
4
≥9
-
-
≤36
24
12000
φ31.4
MFB12-90YC 110/220
-
≥90
4
≥9
-
-
≤36
24
12000
φ31.4

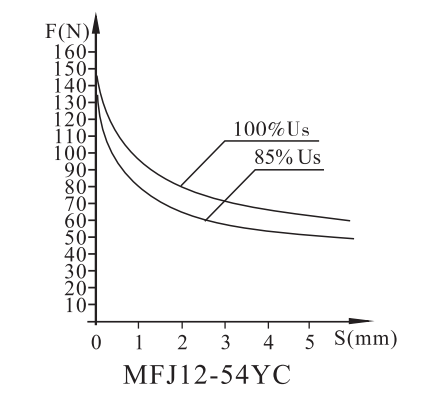

Stroke force characteristic curve
MFJ12-54YC Solenoid for screw connected valve

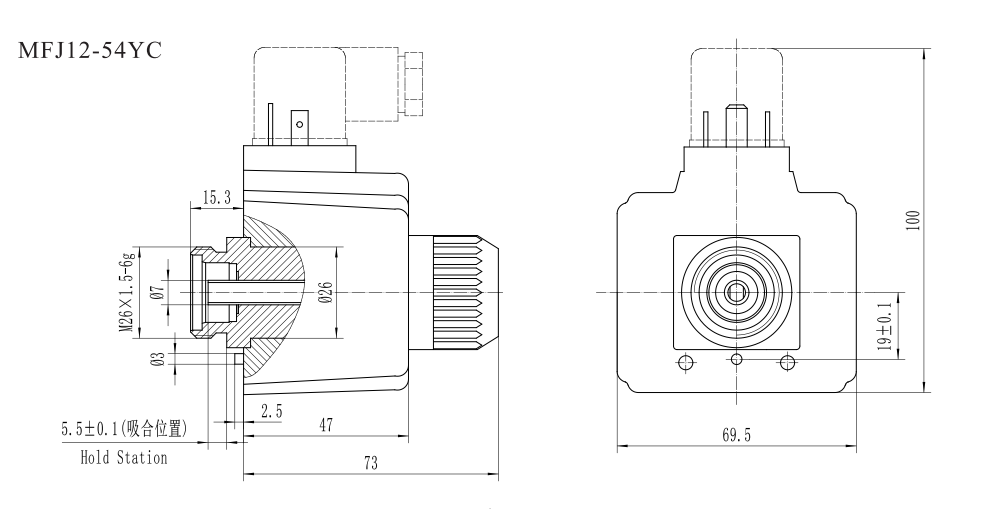

Outline and installation dimensions
MFJ12-54YC Solenoid for screw connected valve
