MFZ6-22YC Solenoid for screw connected valve

As the power element of the hydraulic electromagnetic directional valve, the electromagnet is matched with the electromagnetic directional valve connected by Rexroth six-way screw。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
MFZ6-22YC Solenoid for screw connected valve
Main technical parameters

model Rated current Rated suction Power consumption(W) Rated stroke(mm) Full stroke(mm) Withstand static oil pressure(MPa) Operating frequency(T/h) Coil bore diameter(mm) Starting voltammetry(VA) Holding voltammetry(VA)
MFZ6-22YC 12/24
110/220
≥22
≤30
2.8
≥6.1
16
12000
φ16
-
-
MFJ6-18YC 110/220
≥18
≤30
2.8
≥6.1
16
12000
φ16
≤154
≤55

Stroke force characteristic curve
MFZ6-22YC Solenoid for screw connected valve
MFZ6-22YC Solenoid for screw connected valve

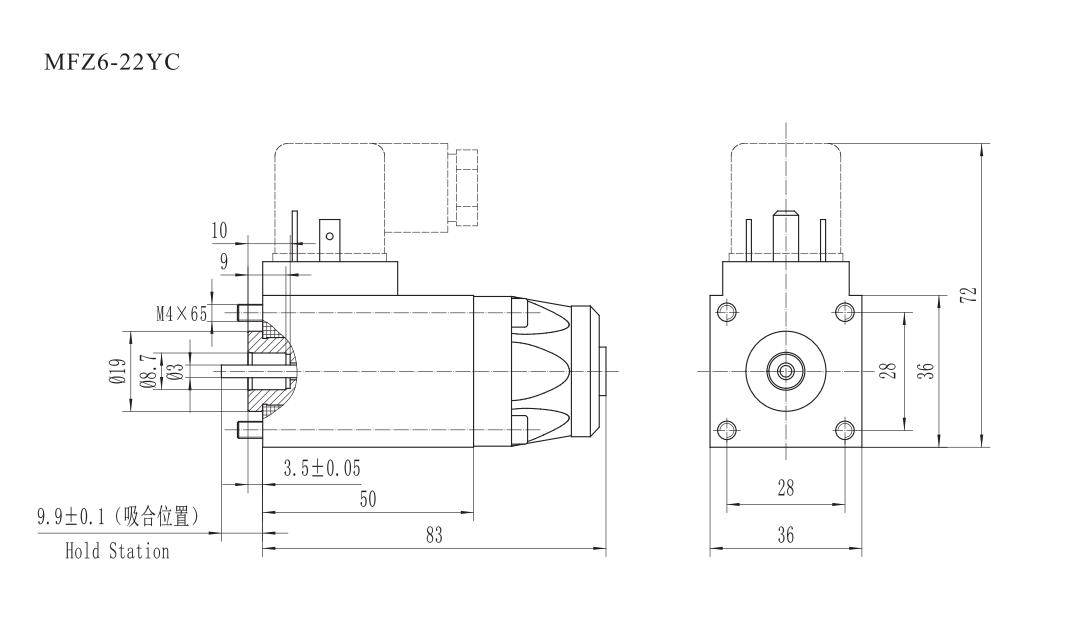

Outline and installation dimensions
MFZ6-22YC Solenoid for screw connected valve
MFZ6-22YC Solenoid for screw connected valve
Anyang Hyoiat electromagnet Manufacturing Co., Ltd
Founded in
1998
Y
A manufacturer of electromagnets for hydraulic valves integrating R & D, production and sales
Anyang Hyoiat electromagnet Manufacturing Co., Ltd
It has passed ISO9001 quality management system certification, CE product safety certification, class I and class II explosion-proof product certification, and has a number of scientific and technological achievements
It has various modern processing and manufacturing equipment and testing instruments, such as high-precision CNC machine group, full-automatic winding machine, robot copper welding machine and so on
Products are used in a variety of industries
It is widely used in automatic control equipment in plastic machinery, agricultural machinery, engineering machinery, metallurgical machinery, CNC machine tools, mining and chemical industry, automobile, military industry, aerospace, water conservancy, post and telecommunications and other fields
