Mfj6-18yc solenoid for screw connected valve

As the power element of the hydraulic electromagnetic directional valve, the electromagnet is matched with the electromagnetic directional valve connected by Rexroth six-way screw。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
Mfj6-18yc solenoid for screw connected valve
Main technical parameters

model Rated current Rated suction Power consumption(W) Rated stroke(mm) Full stroke(mm) Withstand static oil pressure(MPa) Operating frequency(T/h) Coil bore diameter(mm) Starting voltammetry(VA) Holding voltammetry(VA)
MFJ6-18YC 110/220
≥18
≤30
2.8
≥6.1
16
12000
φ16
≤154
≤55

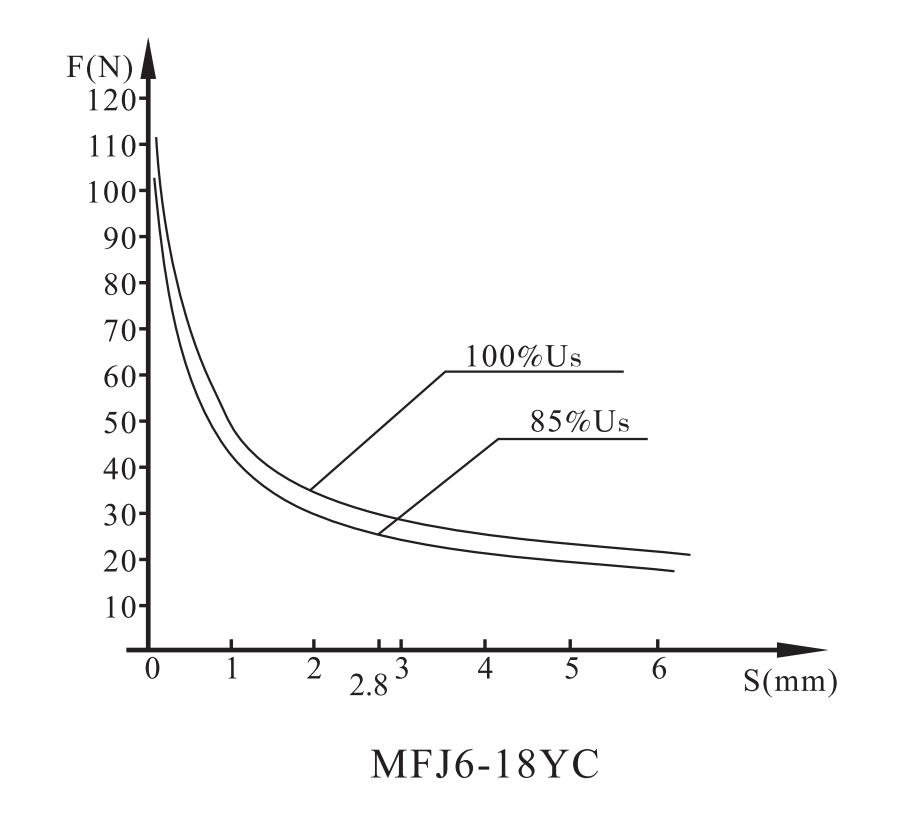

Stroke force characteristic curve
Mfj6-18yc solenoid for screw connected valve

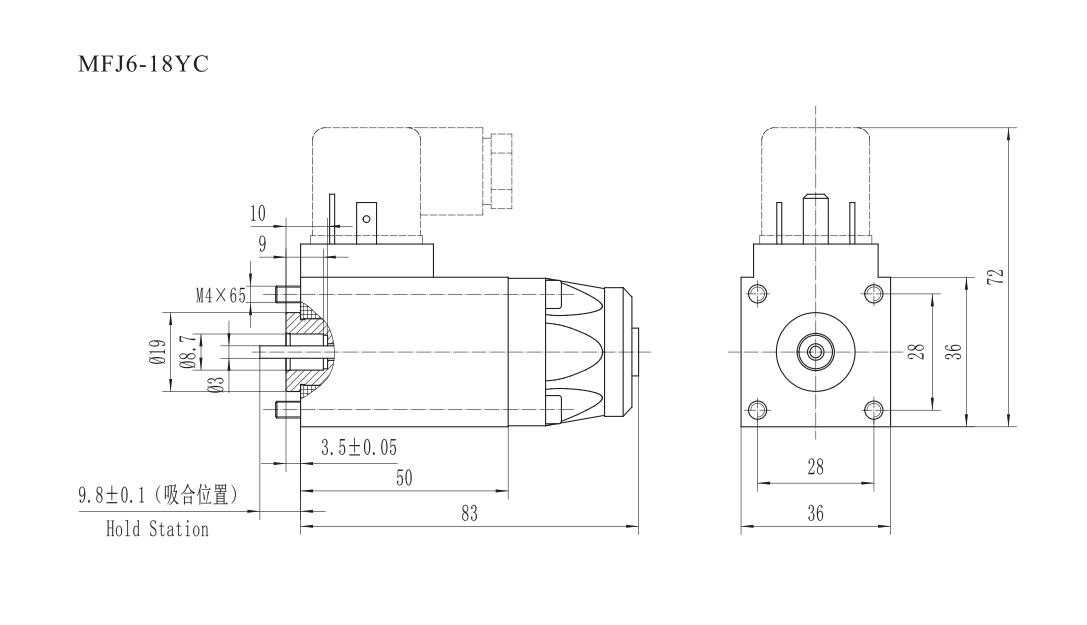

Outline and installation dimensions
Mfj6-18yc solenoid for screw connected valve
