MFZ11-24YC DC electromagnet

As the power element of the hydraulic electromagnetic directional valve, the electromagnet is characterized by low power consumption (the power of conventional products is 18W), wide versatility and reliable performance。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
MFZ11-24YC DC electromagnet
Main technical parameters

Model rated voltage(V) Rated suction(N) Rated stroke(mm) Full stroke(mm) Power consumption(W) Withstand static oil pressure(MPa) Operating frequency(T/h) Coil bore diameter(mm)
MFZ11-24YC 24

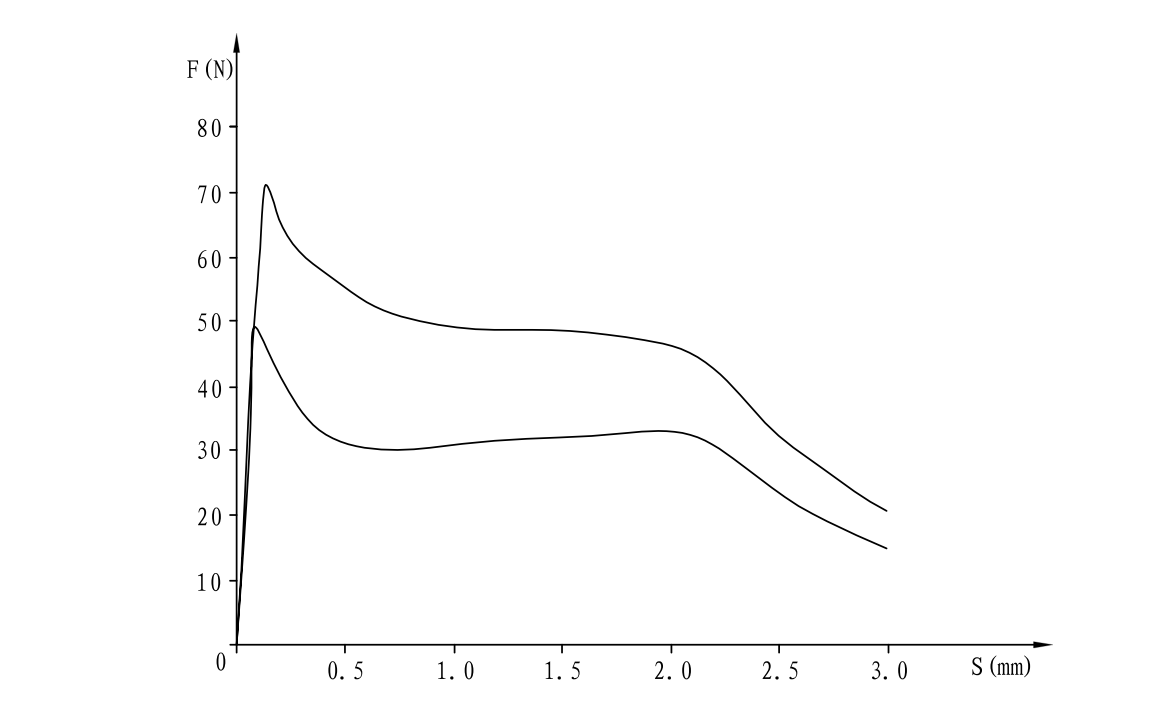

Stroke force characteristic curve
MFZ11-24YC DC electromagnet

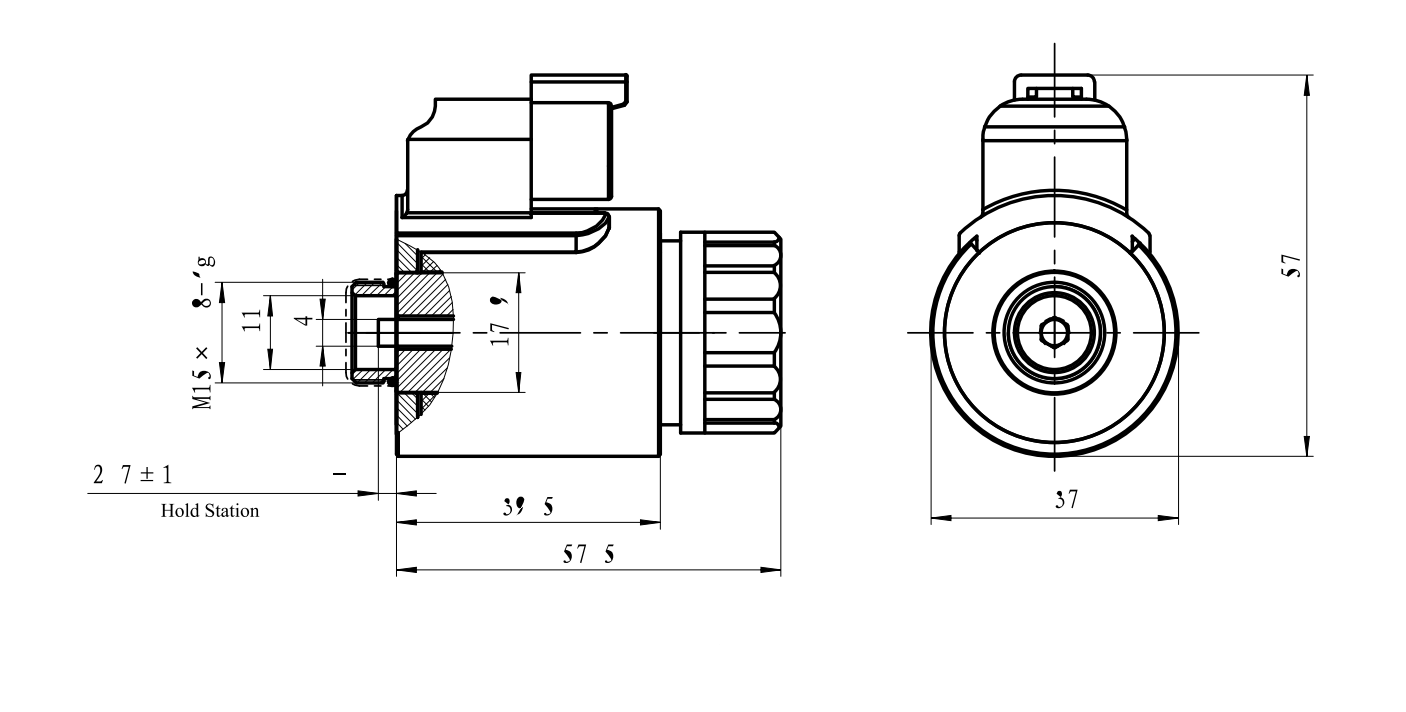

Outline and installation dimensions
MFZ11-24YC DC electromagnet
Anyang Hyoiat electromagnet Manufacturing Co., Ltd
Founded in
A manufacturer of electromagnets for hydraulic valves integrating R & D, production and sales
Anyang Hyoiat electromagnet Manufacturing Co., Ltd
It has passed ISO9001 quality management system certification, CE product safety certification, class I and class II explosion-proof product certification, and has a number of scientific and technological achievements
It has various modern processing and manufacturing equipment and testing instruments, such as high-precision CNC machine group, full-automatic winding machine, robot copper welding machine and so on
Products are used in a variety of industries
It is widely used in automatic control equipment in plastic machinery, agricultural machinery, engineering machinery, metallurgical machinery, CNC machine tools, mining and chemical industry, automobile, military industry, aerospace, water conservancy, post and telecommunications and other fields
