This series of electromagnets is applicable to the control circuit of pulsed DC power supply with voltage up to 12V. It can be used as the power element of high-frequency hydraulic electromagnetic directional valve。
| Model | rated voltage（V） | Rated suction（N） | Rated stroke（mm） | Full stroke（mm） | Power consumption（W） | Withstand static oil pressure（MPa） | Operating frequency（T/h） | Coil bore diameter（mm） |
|---|---|---|---|---|---|---|---|---|

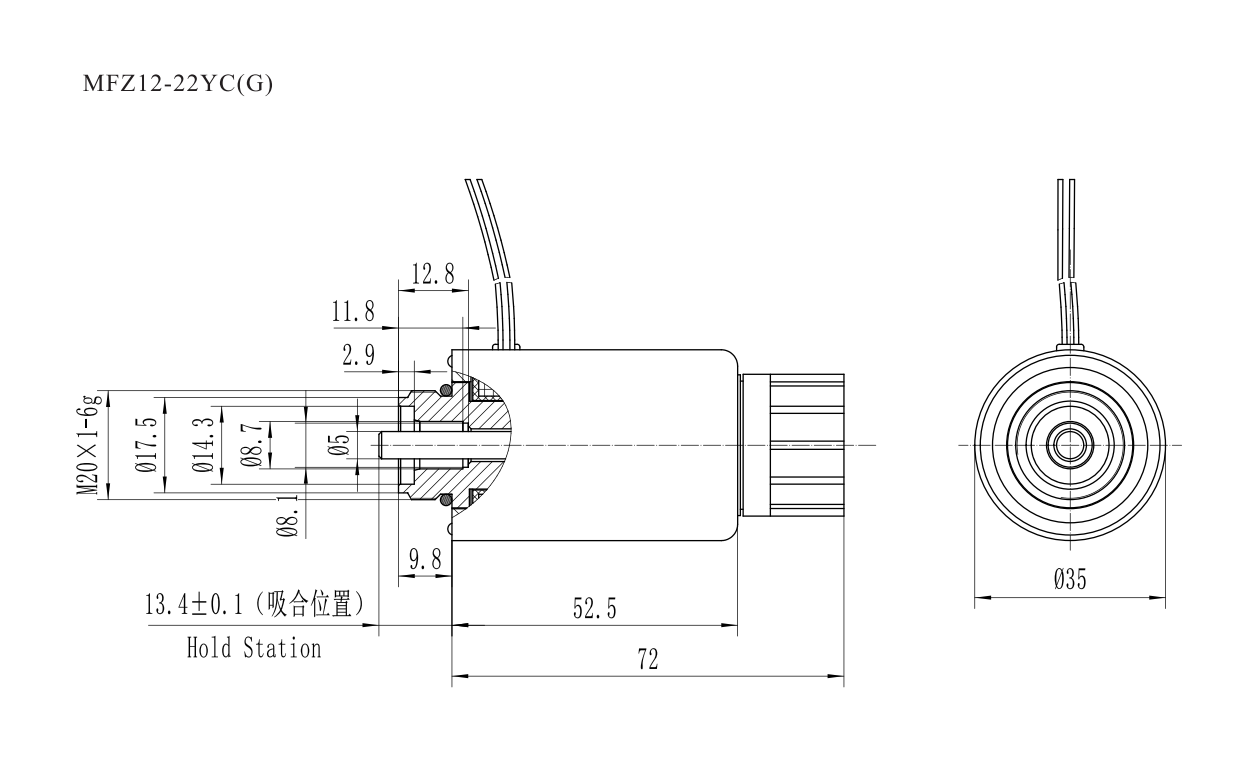

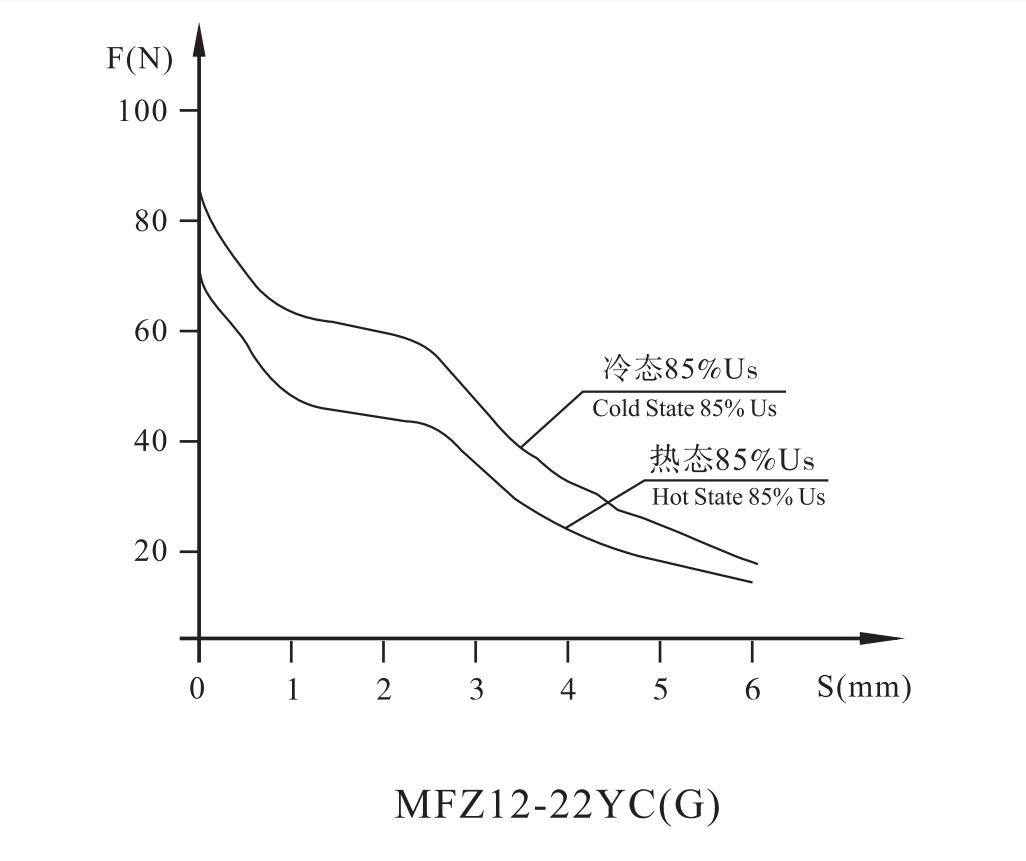

| MFZ12-22YC（G） |
6/8/10/12 |
≥22 |
3 |
≥6 |
≤36 |
19 |
12000 |
φ16 |

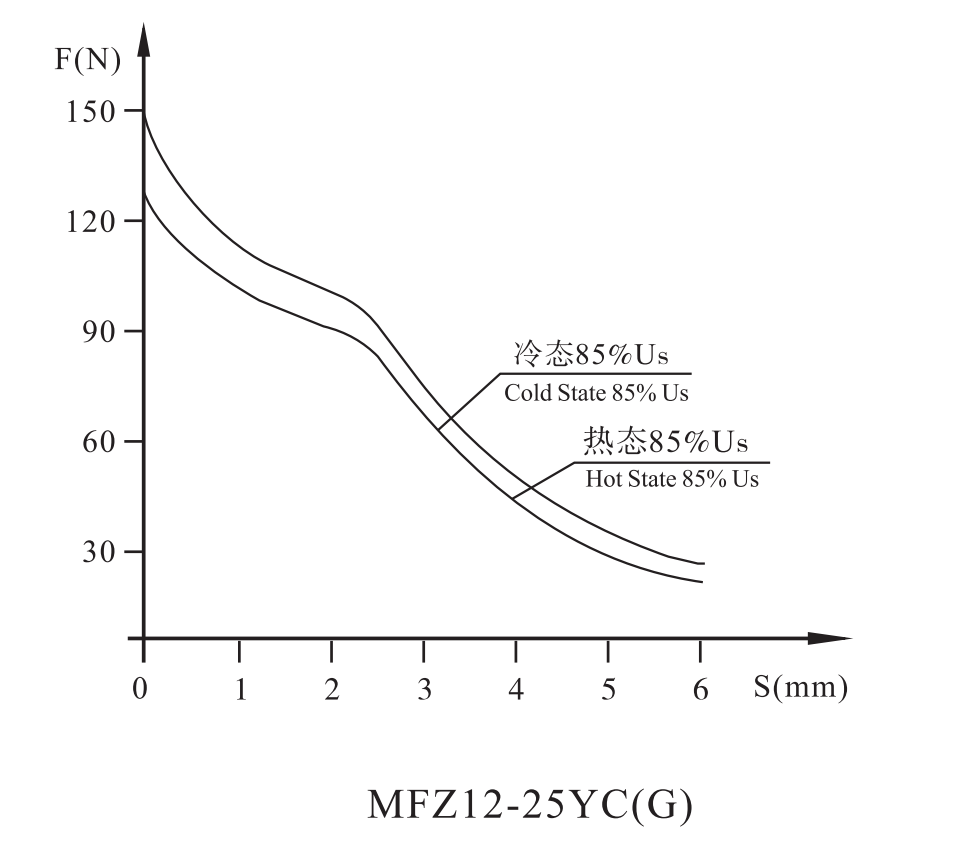

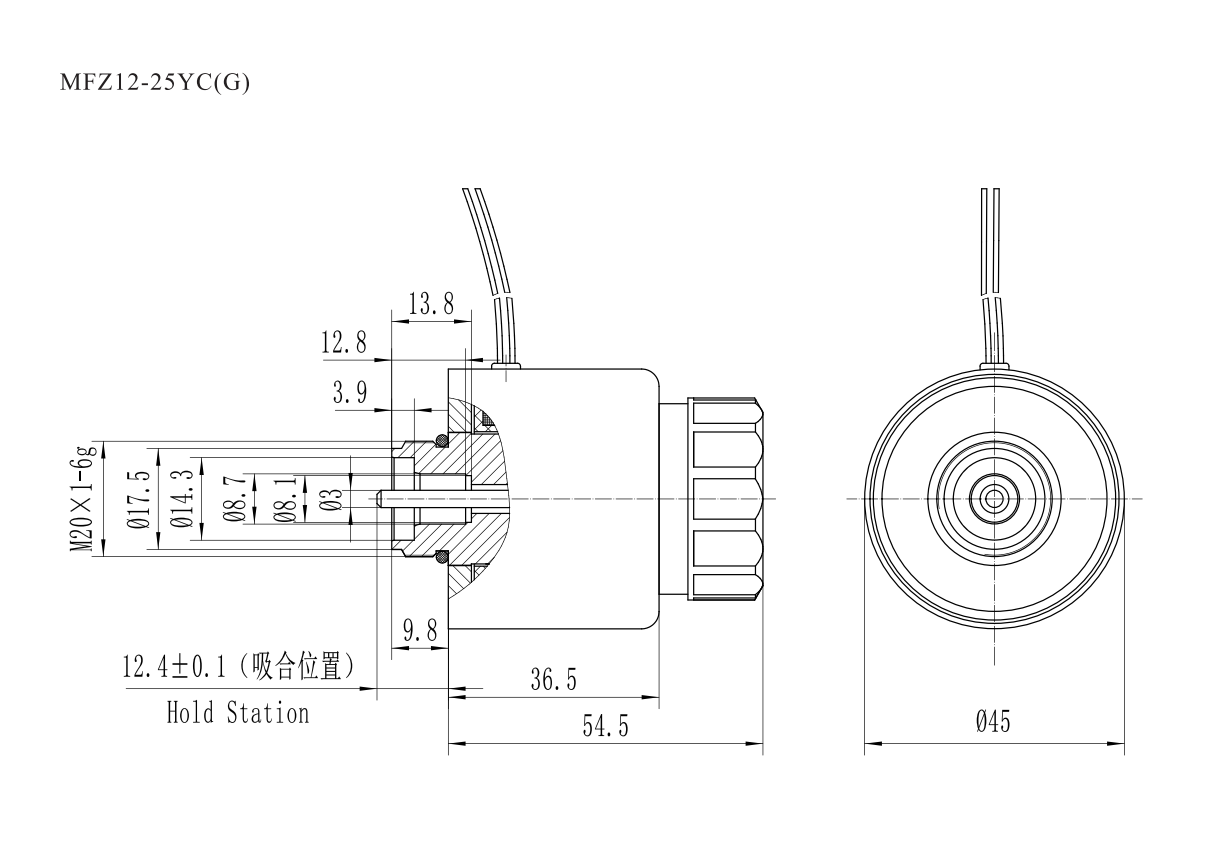

| MFZ12-25YC（G） |
6/8/10/12 |
≥25 |
4 |
≥8 |
≤50 |
24 |
12000 |
φ23 |
