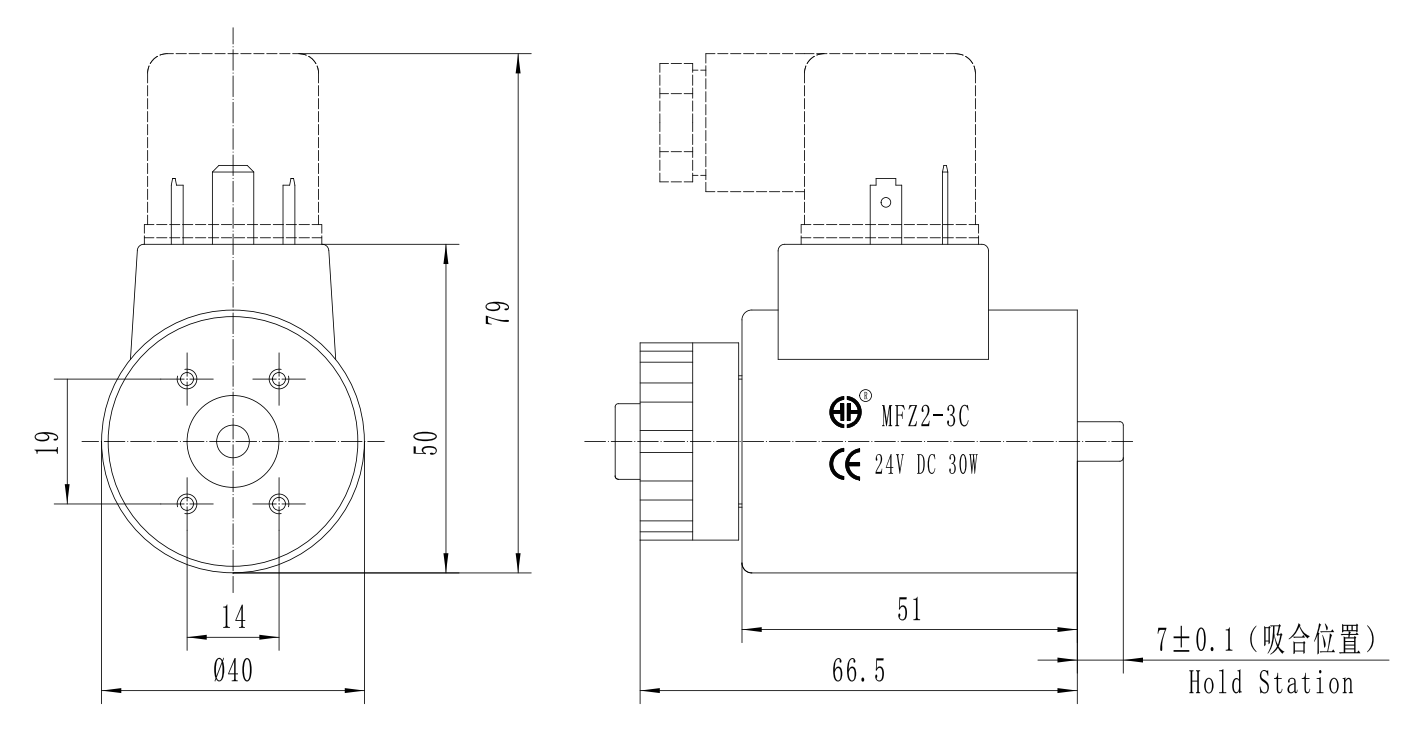

The electromagnet is applicable to the control circuit with DC voltage up to 220V. As the power component of pneumatic electromagnetic ball valve, the connection mode is screw connection, which can be used in instrument industry。
| Model | rated voltage（V） | Power on duration（%） | Rated suction（N） | Rated stroke（mm） | Full stroke（mm） | Power consumption（W） | Degree of protection |
|---|---|---|---|---|---|---|---|
| MFZ2-3C |
12/24/110/220 |
100% |
≥30 |
3 |
≥3 |
≤30 |
IP55 |
