MFZ12-45YC Electromagnet for DC wet valve

As the power element of the hydraulic electromagnetic directional valve, the electromagnet is mainly applied to the compact multi-way valve and can be used in construction machinery vehicles。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
MFZ12-45YC Electromagnet for DC wet valve
Main technical parameters

Model rated voltage(V) Rated suction(N) Rated stroke(mm) Full stroke(mm) Power consumption(W) Withstand static oil pressure(MPa) Operating frequency(T/h) Coil bore diameter(mm)
MFZ12-45YC 12/24
≥54
4
≥8.1
≤30
21
12000
φ23
MFZ12-45YDT 12/24
≥54
4
≥8.1
≤30
21
12000
φ23

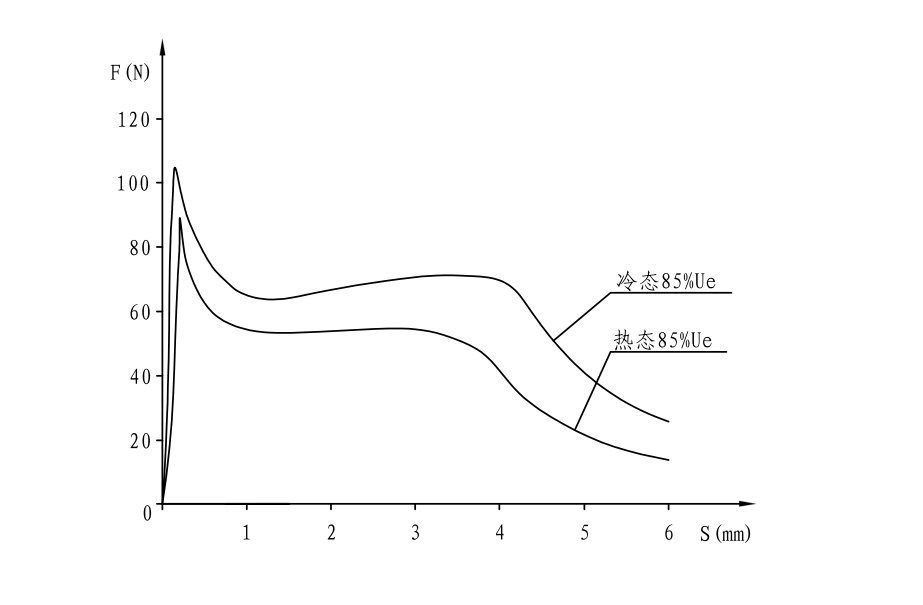

Stroke force characteristic curve
MFZ12-45YC Electromagnet for DC wet valve

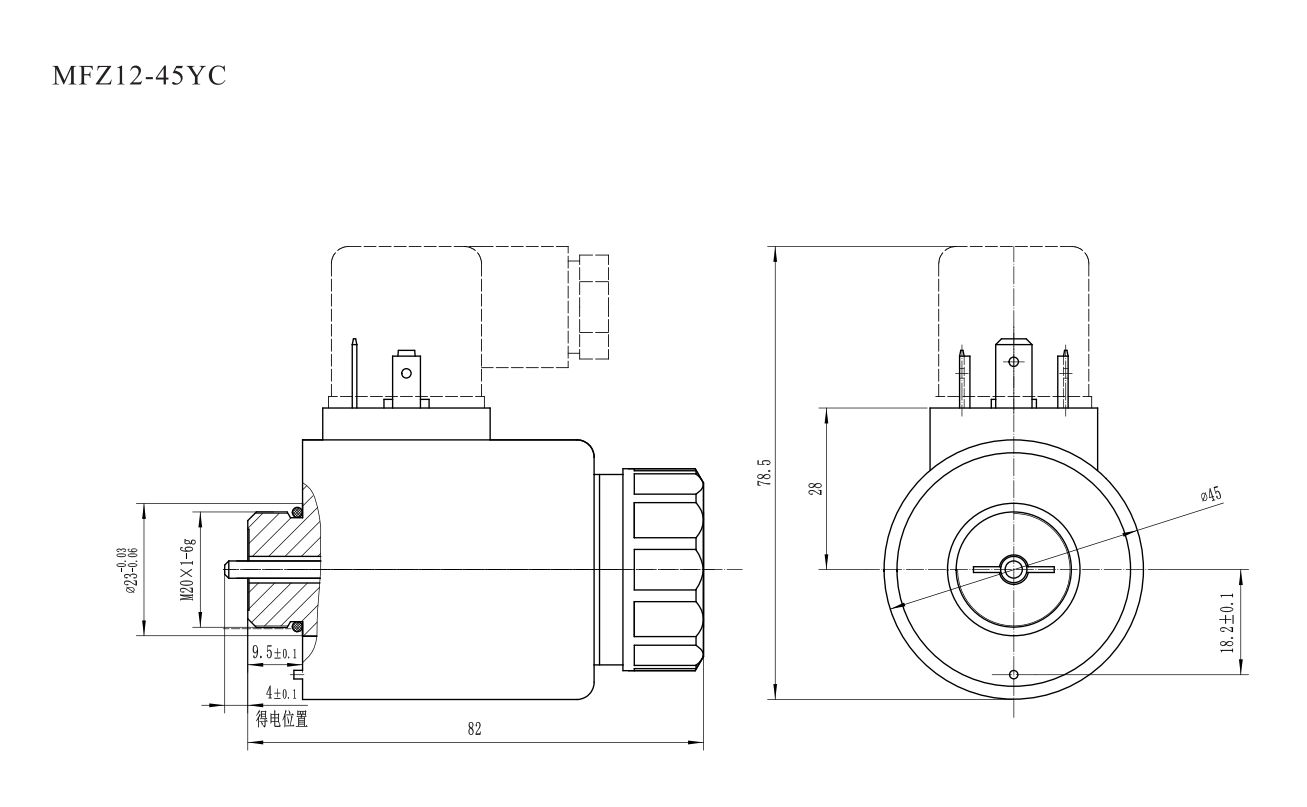

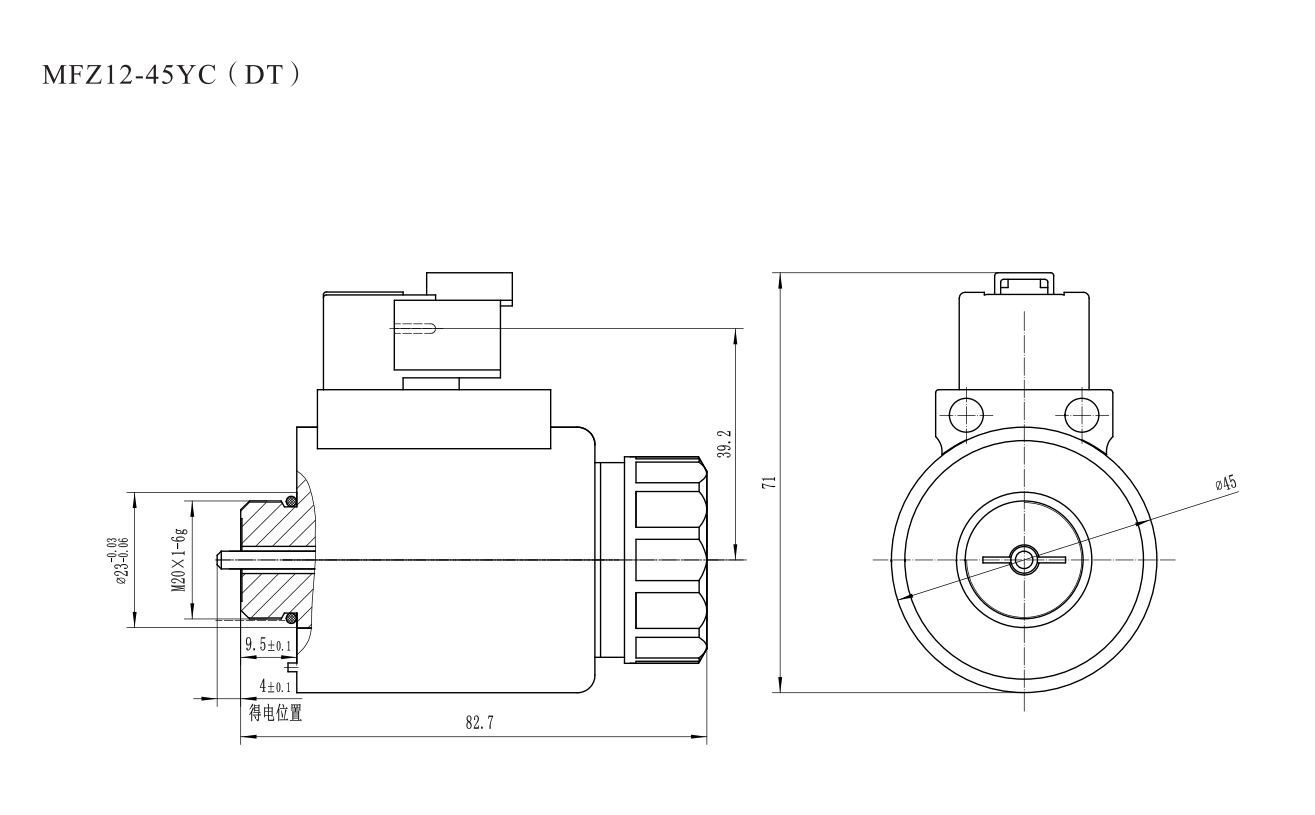

Outline and installation dimensions
MFZ12-45YC Electromagnet for DC wet valve
MFZ12-45YC Electromagnet for DC wet valve
