MFZ12-40YC Pulse electromagnet for series DC valve

As the power element of the hydraulic electromagnetic directional valve, the electromagnet is mainly applied to the compact multi-way valve and can be used in construction machinery vehicles。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
MFZ12-40YC Pulse electromagnet for series DC valve
MFZ12-40YC Pulse electromagnet for series DC valve
Main technical parameters

Model rated voltage(V) Rated suction(N) Rated stroke(mm) Full stroke(mm) Power consumption(W) Withstand static oil pressure(MPa) Operating frequency(T/h) Coil bore diameter(mm)
MFZ12-40YC 12/24
≥40
2
≥6
≤24
19
12000
φ19
MFZ12-40YDT 12/24
≥40
2
≥6
≤24
19
12000
φ19

Stroke force characteristic curve
MFZ12-40YC Pulse electromagnet for series DC valve

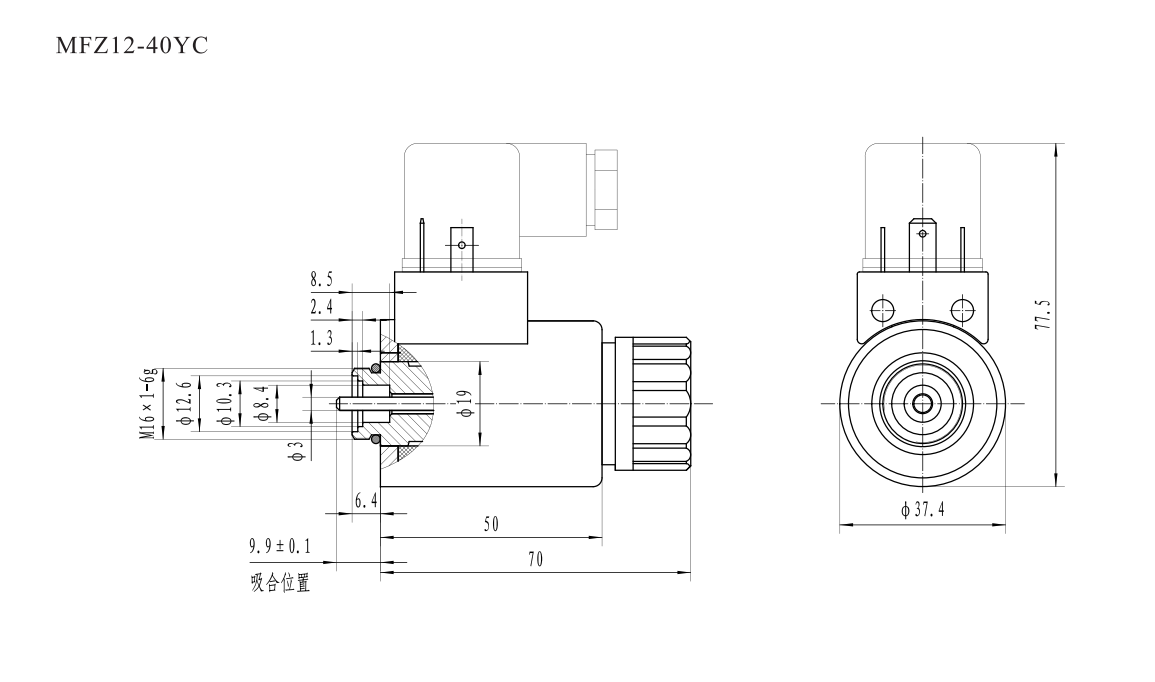

Outline and installation dimensions
MFZ12-40YC Pulse electromagnet for series DC valve
MFZ12-40YC Pulse electromagnet for series DC valve
Anyang Hyoiat electromagnet Manufacturing Co., Ltd
Founded in
1998
Y
A manufacturer of electromagnets for hydraulic valves integrating R & D, production and sales
Anyang Hyoiat electromagnet Manufacturing Co., Ltd
It has passed ISO9001 quality management system certification, CE product safety certification, class I and class II explosion-proof product certification, and has a number of scientific and technological achievements
It has various modern processing and manufacturing equipment and testing instruments, such as high-precision CNC machine group, full-automatic winding machine, robot copper welding machine and so on
Products are used in a variety of industries
It is widely used in automatic control equipment in plastic machinery, agricultural machinery, engineering machinery, metallurgical machinery, CNC machine tools, mining and chemical industry, automobile, military industry, aerospace, water conservancy, post and telecommunications and other fields
