DTBZ12-37FYC Electromagnet for flameproof hydraulic valve

This series of electromagnets are used for explosion-proof hydraulic valves. They can be matched with Rexroth type and Youyan type 6-way / 10-way directional valves as the power element of the electromagnetic directional valve。

matters needing attention:

1.Exd Ⅰ MB is the electromagnet for mine flameproof valve, which is used in coal mine, and Exd Ⅱ cT4 CB flameproof valve electromagnet is used in petroleum, chemical and other industries。

2.Live working is strictly prohibited. During disassembly, pay attention to protect the flameproof surface to avoid damage。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
DTBZ12-37FYC Electromagnet for flameproof hydraulic valve
Main technical parameters

model Service environment, rated voltage(V) Rated suction(N) Rated stroke(mm) Full stroke(mm) Rated power(W) Withstand static oil pressure(MPa)
DTBZ12-37FYC Exd I Mb
Exd Ⅱ CT4 Gb
DC12
DC24
DC110
AC36V
AC127V
AC220V
37
2.8
≥6.1
16.5,22
21
DTBZ9-37FYC Exd I Mb
Exd Ⅱ CT4 Gb
DC12
DC24
DC110
AC36V
AC127V
AC220V
37
2.8
≥6.1
16.5,22
21
DTBZ12-90FYC Exd I Mb
Exd Ⅱ CT4 Gb
DC12
DC24
DC110
AC36V
AC127V
AC220V
90
4
≥9
18,22
21
DTBZ9-90FYC Exd I Mb
Exd Ⅱ CT4 Gb
DC12
DC24
DC110
AC36V
AC127V
AC220V
90
4
≥9
18,22
21

Stroke force characteristic curve
no-img

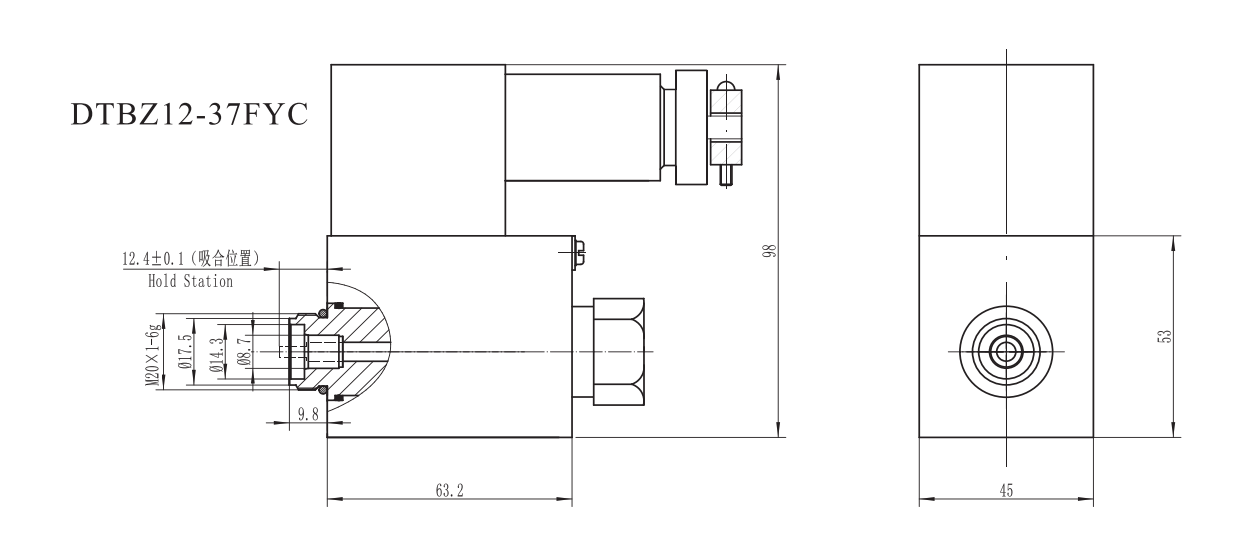

Outline and installation dimensions
DTBZ12-37FYC Electromagnet for flameproof hydraulic valve
DTBZ12-37FYC Electromagnet for flameproof hydraulic valve
DTBZ12-37FYC Electromagnet for flameproof hydraulic valve
DTBZ12-37FYC Electromagnet for flameproof hydraulic valve
