Dtbz-75bl proportional electromagnet for flameproof hydraulic valve

This series of electromagnets is used for explosion-proof hydraulic valve, which can be used together with electro-hydraulic overflow valve to realize long-distance regulation of system pressure。

matters needing attention:

1.Exd Ⅰ MB is the electromagnet for mine flameproof valve, which is used in coal mine, and Exd Ⅱ ct4wb flameproof valve electromagnet is used in petroleum and chemical industries

2.Live working is strictly prohibited. During disassembly, pay attention to protect the flameproof surface to avoid damage!

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
Dtbz-75bl proportional electromagnet for flameproof hydraulic valve
Main technical parameters

model Rated current normal resistance 20℃ Rated suction Rated stroke full stroke force hysteresis current hysteresis repetition accuracy bearing static oil pressure
DTBZ-75BL 0.8
19.5
75
3
3.2
≤3
≤3
≤1
21

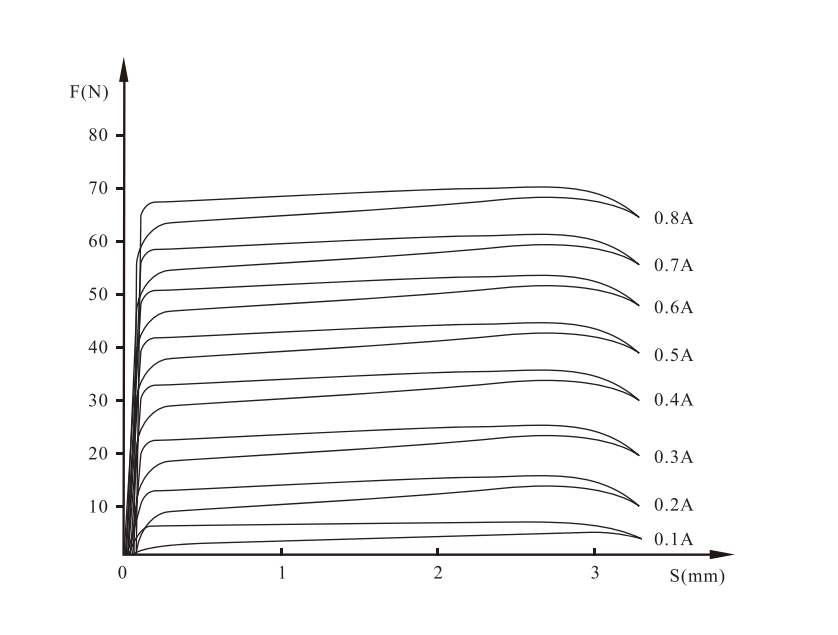

Stroke force characteristic curve
Dtbz-75bl proportional electromagnet for flameproof hydraulic valve
Outline and installation dimensions
Dtbz-75bl proportional electromagnet for flameproof hydraulic valve
