GP37-S-D Electromagnet for threaded proportional valve

This product is suitable for DC 12V or 24V electro-hydraulic proportional control system. When used together with the electronic proportional controller, it can realize the accurate control of the corresponding electric proportional variable pump, direct acting or pilot proportional speed regulating valve. It is often used in concrete truck pumps, excavators, plastic injection molding machines and other mechanical equipment。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
GP37-S-D Electromagnet for threaded proportional valve
GP37-S-D Electromagnet for threaded proportional valve
Main technical parameters

model Rated current normal resistance 20℃ Rated suction Rated stroke full stroke force hysteresis current hysteresis repetition accuracy bearing static oil pressure working oil temperature enclosure protection grade power connection mode outer diameter of magnetic core tube
GP37-S-A 2
2.7
45
2.2
4.5
≤3
≤3
≤1
21
-20~+70
IP67
DT04-2P
DT062S
DIN43650
φ19
GP37-S-D/E/H/K 0.6
0.9
1.2
22
10
5.5
40
2
2+0.7
≤3
≤3
≤1
21
-20~+70
IP67
DT04-2P
DT062S
DIN43650
φ19

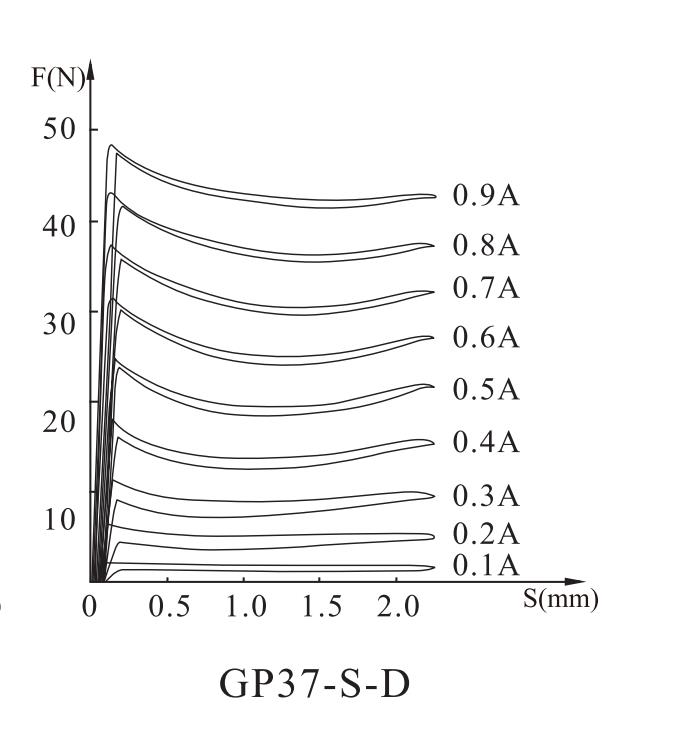

Stroke force characteristic curve
GP37-S-D Electromagnet for threaded proportional valve
GP37-S-D Electromagnet for threaded proportional valve

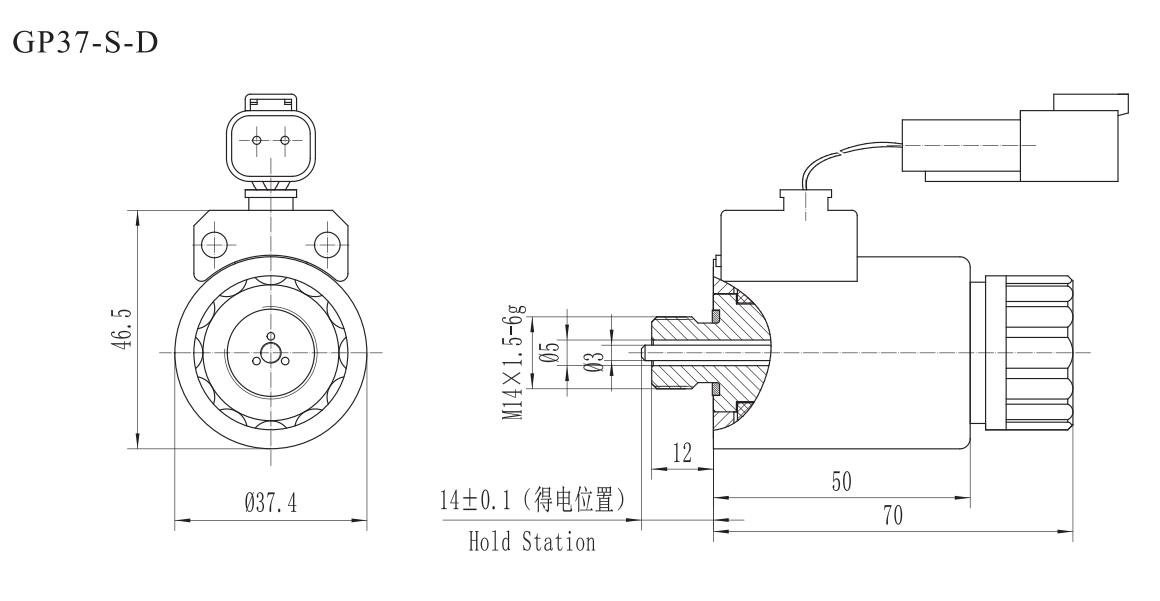

Outline and installation dimensions
GP37-S-D Electromagnet for threaded proportional valve
GP37-S-D Electromagnet for threaded proportional valve
GP37-S-D Electromagnet for threaded proportional valve
GP37-S-D Electromagnet for threaded proportional valve
