CZ Electromagnet for series cartridge valve

This is a solenoid driven electromagnet used with 2 normally closed hydraulic threaded cartridge valve。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
CZ Electromagnet for series cartridge valve
CZ Electromagnet for series cartridge valve
CZ Electromagnet for series cartridge valve
Main technical parameters

Model rated voltage(V) normal resistance 20℃(Ω) Initial current consumption(A) Rated power(W) Rated stroke(mm) Full stroke(mm) Withstand static oil pressure(MPa) Enclosure protection class Temperature resistance grade
CZ27 DC12/DC24
(其他电压可定制)
12V 8.8
24V 34.5
1.36
0.69
17
16.6
-
-
-
-
-
CZ31 DC12/DC24
(其他电压可定制)
12V 8.45
24V 33.8
1.4
0.7
16.8
-
-
-
-
-
CZ36 DC12/DC24
(其他电压可定制)
12V 8.45
24V 33.8
1.4
0.7
16.8
2.2
4.5
21
IP67
H
CZ42/CZ42(YX) DC12/DC24
(其他电压可定制)
12V 7.1
24V 28.5
1.7
0.8
20
19.2
-
-
-
-
-

Stroke force characteristic curve
no-img

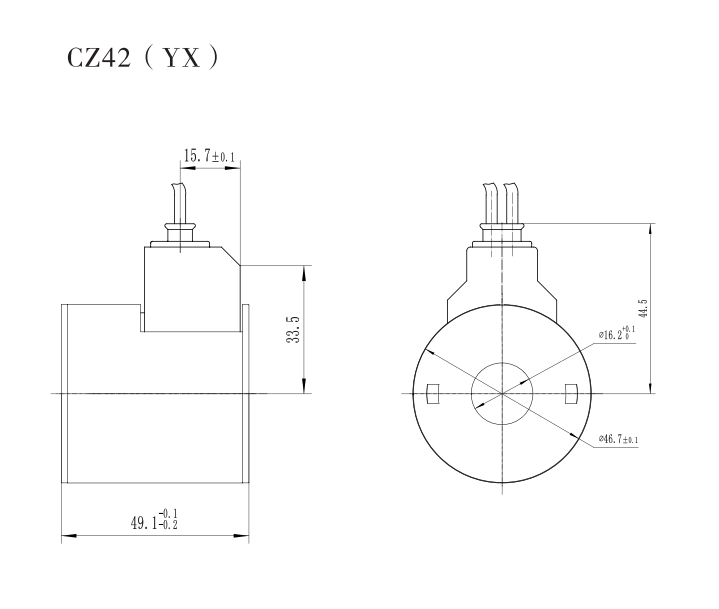

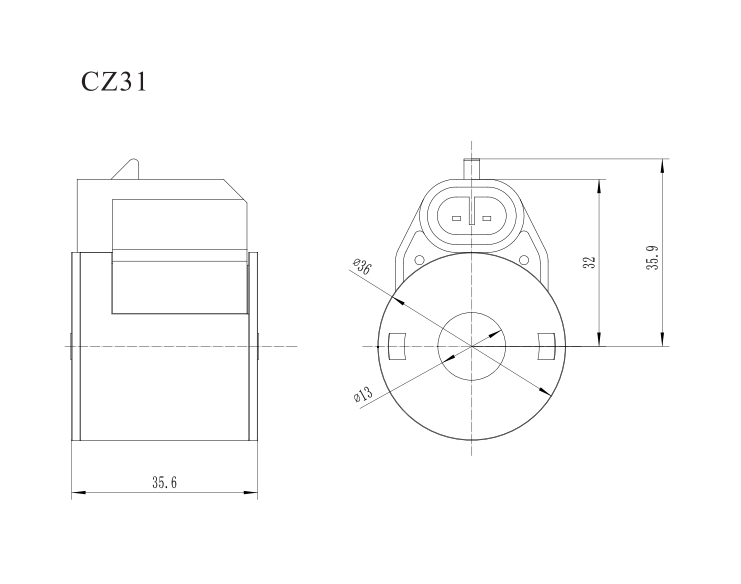

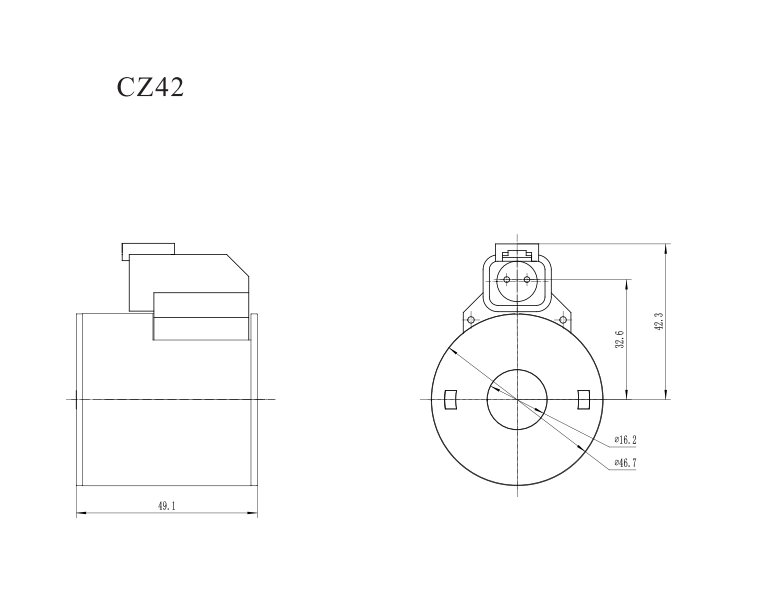

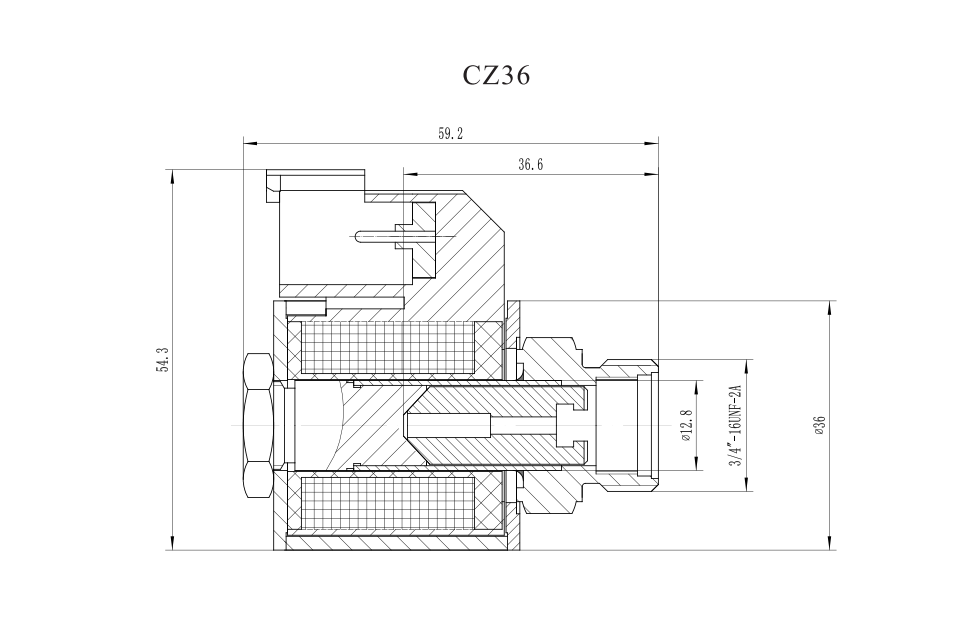

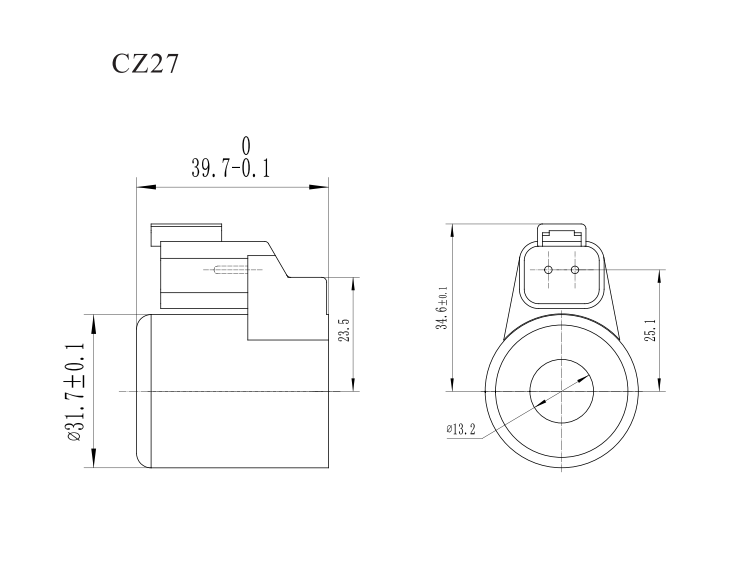

Outline and installation dimensions
CZ Electromagnet for series cartridge valve
CZ Electromagnet for series cartridge valve
CZ Electromagnet for series cartridge valve
CZ Electromagnet for series cartridge valve
CZ Electromagnet for series cartridge valve
