Electromagnet for gp45-ra / Rae (4wra / 4wrae valve) series threaded proportional valve

This series of products are used to control Rexroth six-way threaded proportional valve. Stepless regulation of the input current within the rated range can realize stepless speed regulation and remote control of the actuator of the hydraulic system within the rated range。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
Electromagnet for gp45-ra / Rae (4wra / 4wrae valve) series threaded proportional valve
Electromagnet for gp45-ra / Rae (4wra / 4wrae valve) series threaded proportional valve
Main technical parameters

model Rated current(A),normal resistance 20℃(Ω) Rated suction(N) Rated stroke(mm) Full stroke(mm) Force hysteresis(%) Repetition accuracy(%) Withstand static oil pressure(MPa) Operating oil temperature(℃) Enclosure protection grade power connection mode model of adapter valve and model of enlarged version
GP45-RA 2.5
2
60
2.8
≥6
≤2.5
≤1
21
-20~+70
IP65
插头式
力士乐型/华德型
4WRA6...-2X/G24阀
外置VT-VSPA2-1-1X
GP45-RAE 2.5
2
60
2.8
≥6
≤2.5
≤1
21
-20~+70
IP65
接线盒式
力士乐型/华德型
4WRA6...-2X/G24阀
内置放大版

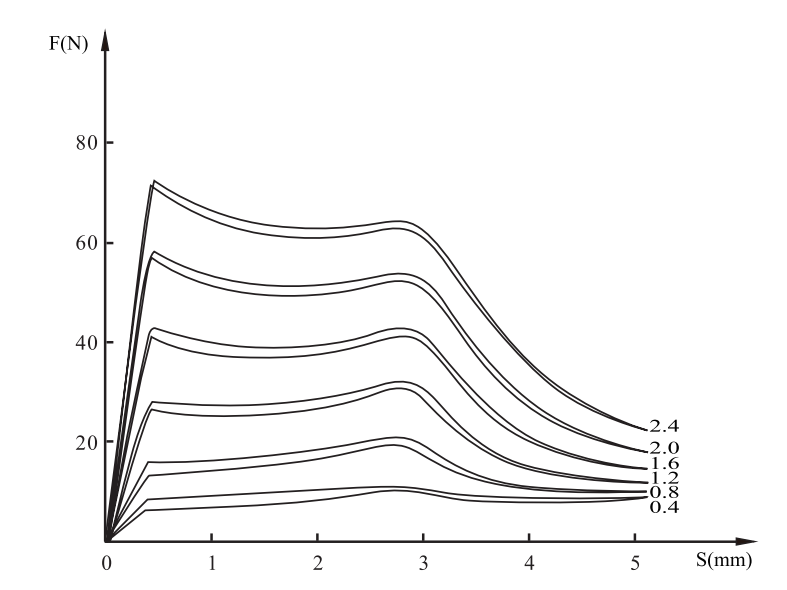

Stroke force characteristic curve
Electromagnet for gp45-ra / Rae (4wra / 4wrae valve) series threaded proportional valve

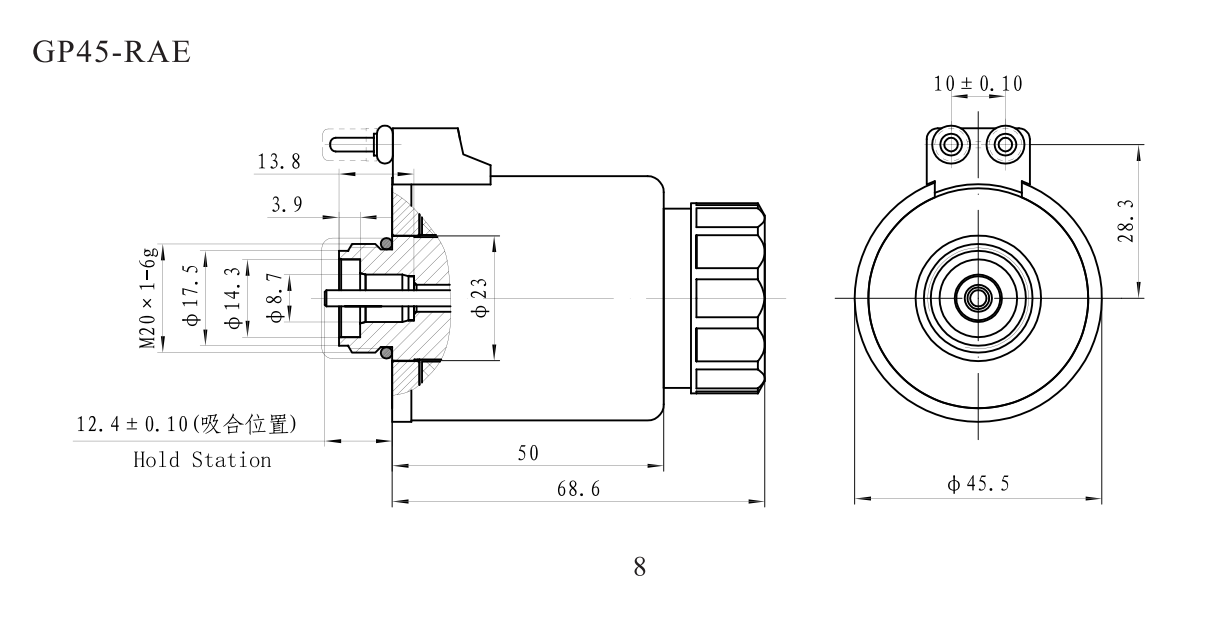

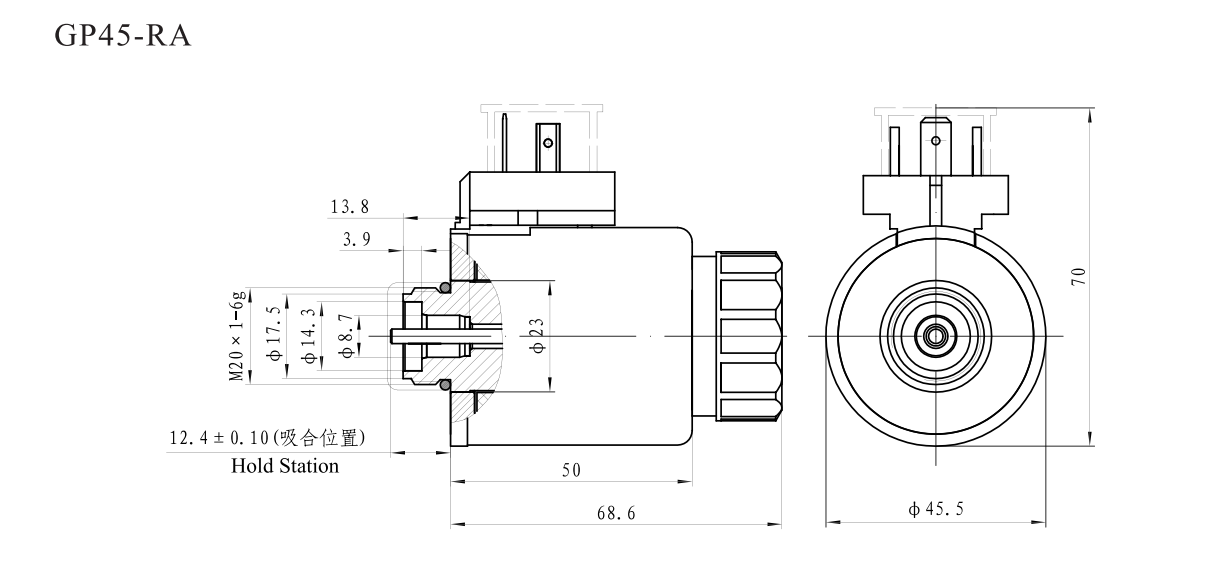

Outline and installation dimensions
Electromagnet for gp45-ra / Rae (4wra / 4wrae valve) series threaded proportional valve
Electromagnet for gp45-ra / Rae (4wra / 4wrae valve) series threaded proportional valve
