GP80-4-A Electromagnet for proportional valve

This product is used together with the proportional control amplifier to accurately control the valve core position of the electro-hydraulic proportional valve. It is often used as the power element of direct control proportional overflow valve, proportional flow valve, proportional throttle valve and electro-hydraulic proportional compound valve (PQ valve)。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
GP80-4-A Electromagnet for proportional valve
Main technical parameters

model Rated current(A),normal resistance 20℃(Ω) Rated suction(N) Rated stroke(mm) Full stroke(mm) Force hysteresis(%) Current hysteresis(%) Repetition accuracy(%) Withstand static oil pressure(MPa) Heat resistance grade
GP80-4-A 0.68

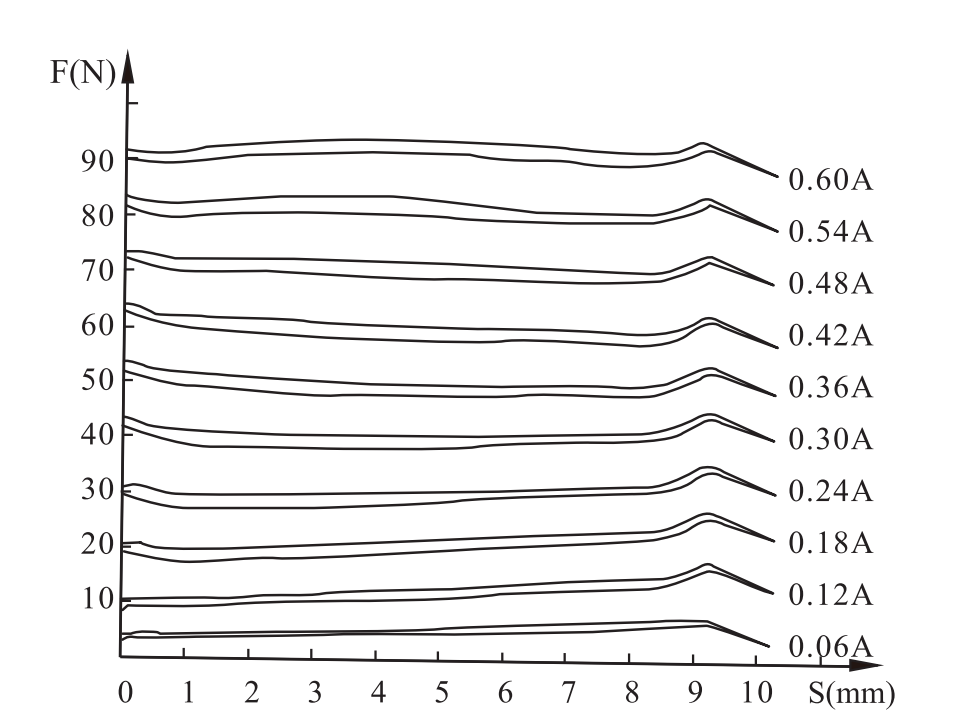

Stroke force characteristic curve
GP80-4-A Electromagnet for proportional valve

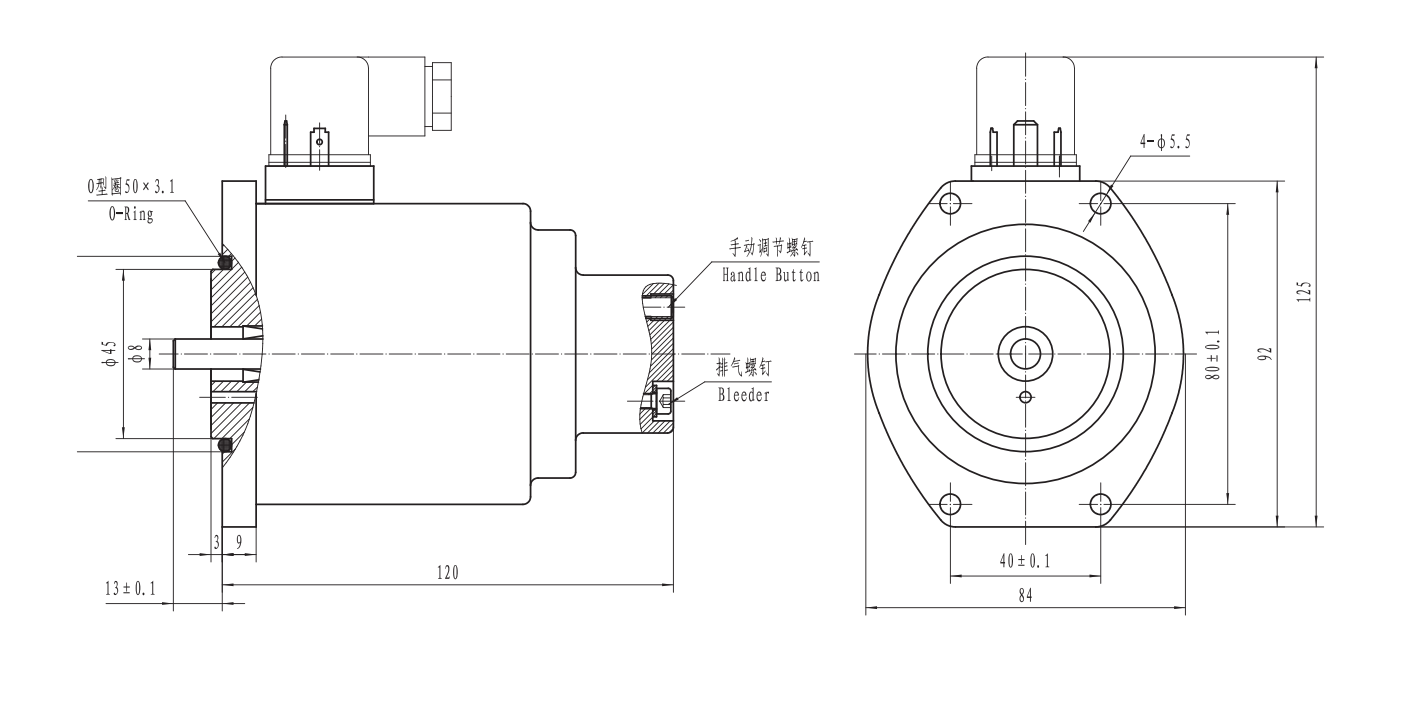

Outline and installation dimensions
GP80-4-A Electromagnet for proportional valve
