This series of products are used for Rexroth 10-way threaded proportional valve. Through the built-in reaction spring, the characteristics of the output force are changed to make the output pressure of the system more stable。
| model | Rated current（A）,normal resistance 20℃（Ω） | Rated suction（N） | Rated stroke（mm） | Full stroke（mm） | Force hysteresis（%） | Current hysteresis（%） | Repetition accuracy（%） | Withstand static oil pressure（MPa） | Operating oil temperature（℃） | Enclosure protection class | Power connection mode | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

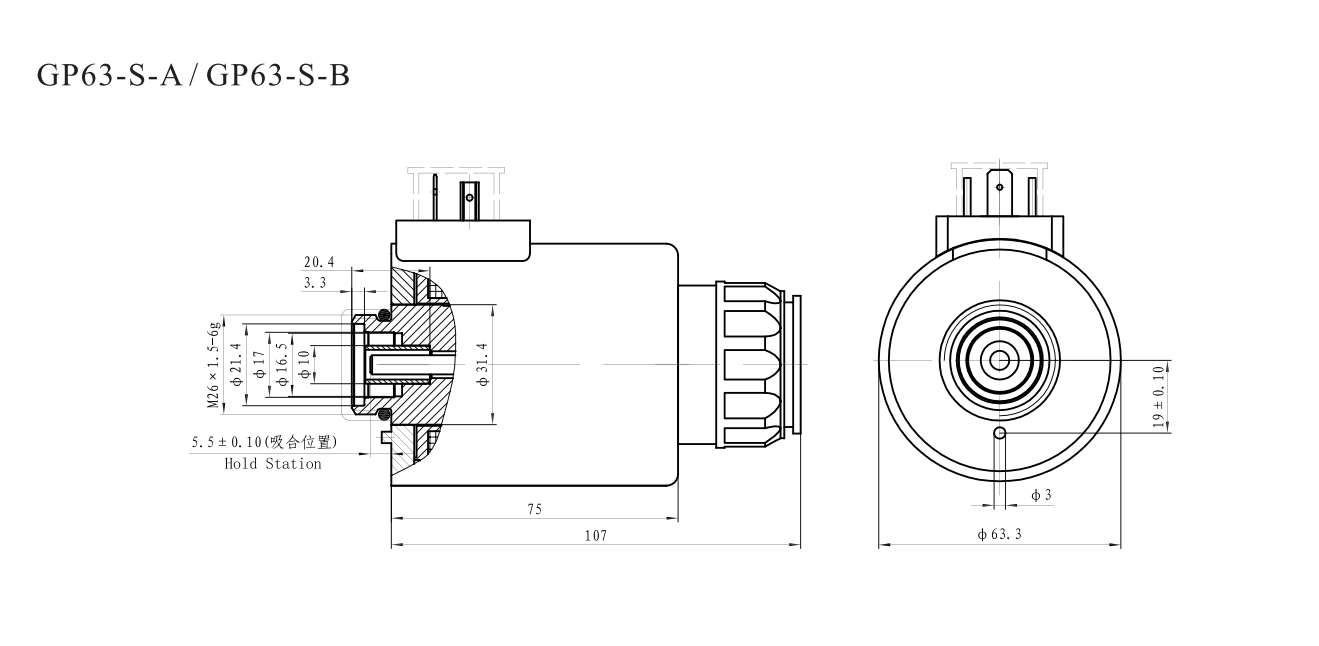

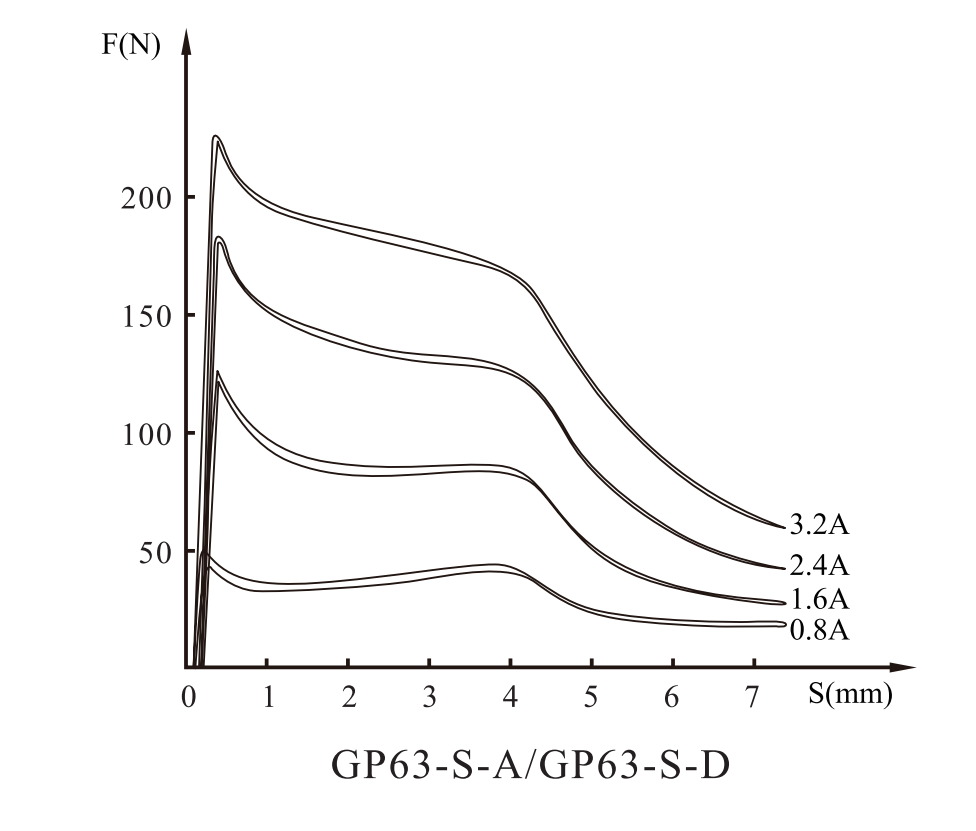

| GP63-S-A |
3.3 |
2 |
170 |
4 |
≥9 |
≥3 |
≥3 |
≥1 |
24 |
-20~+70 |
IP65 |
插头式 |
| GP63-S-B |
2.6 |
4.1 |
170 |
4 |
≥9 |
≥3 |
≥3 |
≥1 |
24 |
-20~+70 |
IP65 |
插头式 |

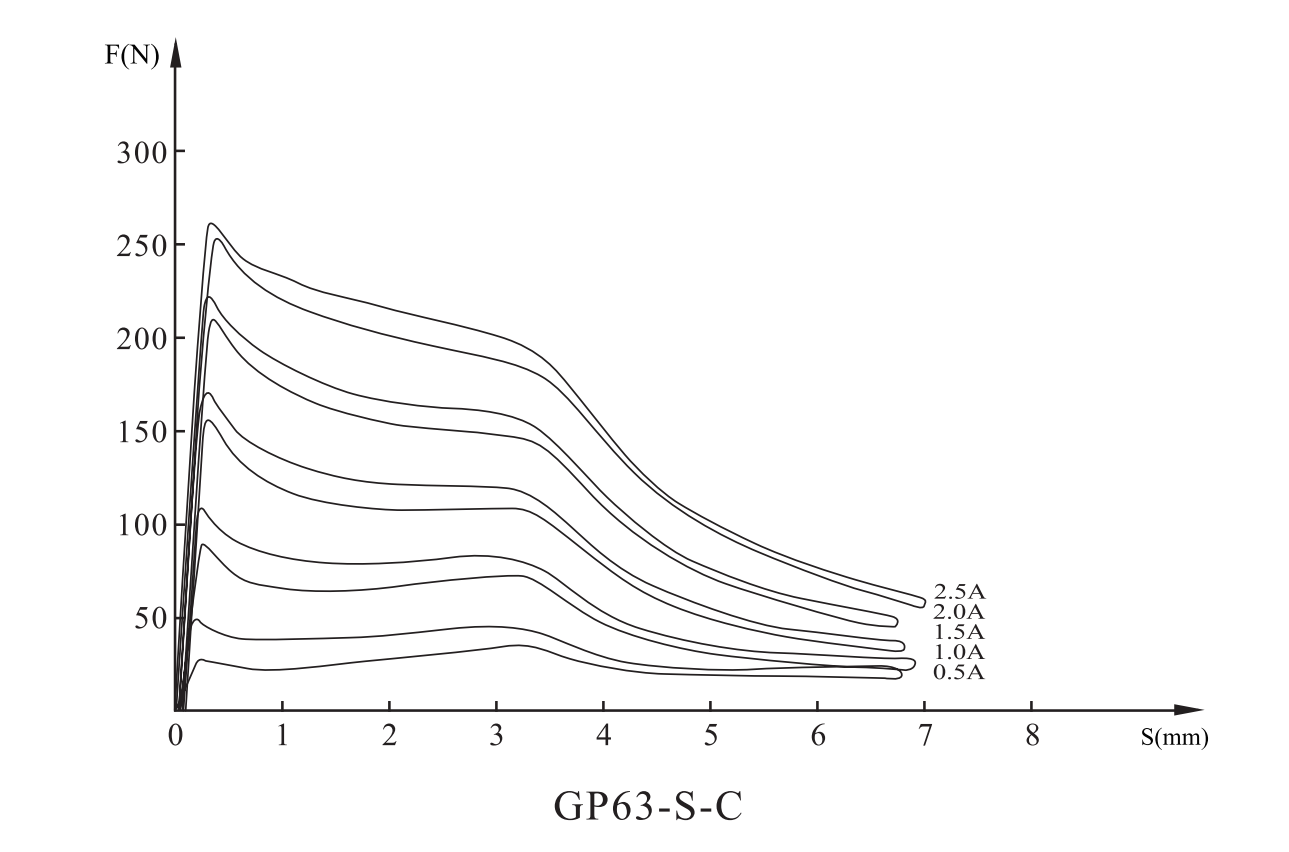

| GP63-S-C |
2.5 |
3.7 |
160 |
4 |
≥9 |
≥3 |
≥3 |
≥1 |
24 |
-20~+70 |
IP65 |
接线盒式 |
| GP63-S-D |
3.3 |
2 |
170 |
4 |
≥9 |
≥3 |
≥3 |
≥1 |
24 |
-20~+70 |
IP65 |
接线盒式 |
