GH263-060 Electromagnet for series proportional valve

The product is used for the control of proportional variable pump and oil motor. By changing the position of proportional valve core, the output flow of proportional variable pump or oil motor can be realized Stepless regulation and remote control of torque and speed

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
GH263-060 Electromagnet for series proportional valve
Main technical parameters

model Rated current(A),normal resistance 20℃(Ω) Rated suction(N) Rated stroke(mm) Full stroke(mm) Force hysteresis(%) Current hysteresis(%) Repetition accuracy(%) Withstand static oil pressure(MPa) Heat resistance grade
GH263-035 0.68
24.6
50
2
2.5
≤3
≤2
≤1
21
F
GH263-045 0.8
19.5
75
3
6
≤3
≤2
≤1
21
F
GH263-060 1.11
16.7
145
4
8
≤4
≤3
≤1
21
F

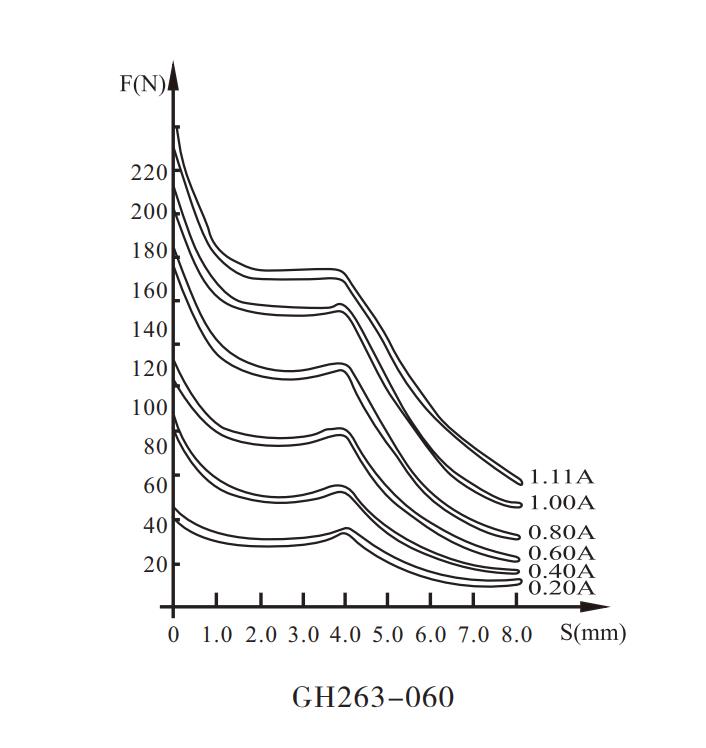

Stroke force characteristic curve
GH263-060 Electromagnet for series proportional valve
Outline and installation dimensions
GH263-060 Electromagnet for series proportional valve
