MFZ9A-37YC(SG)Solenoid for screw connected valve

This series of electromagnets can be matched with Yuken solenoid directional valve with six and ten diameter thread connection。

Source manufacturer
Stable delivery date
Safety and energy saving
After sales guarantee
MFZ9A-37YC(SG)Solenoid for screw connected valve
Main technical parameters

Model rated voltage(V) Rated suction(N) Rated stroke(mm) Full stroke(mm) Power consumption(W) Withstand static oil pressure(MPa) Operating frequency(T/h) Coil bore diameter(mm)
MFZ9A-37YC(SG) 12/24
≥37
3
≥6
≤30
19
12000
φ23
MFZ9A-55YC(CS) 12/24
≥55
4
≥8
≤30
24
12000
φ26

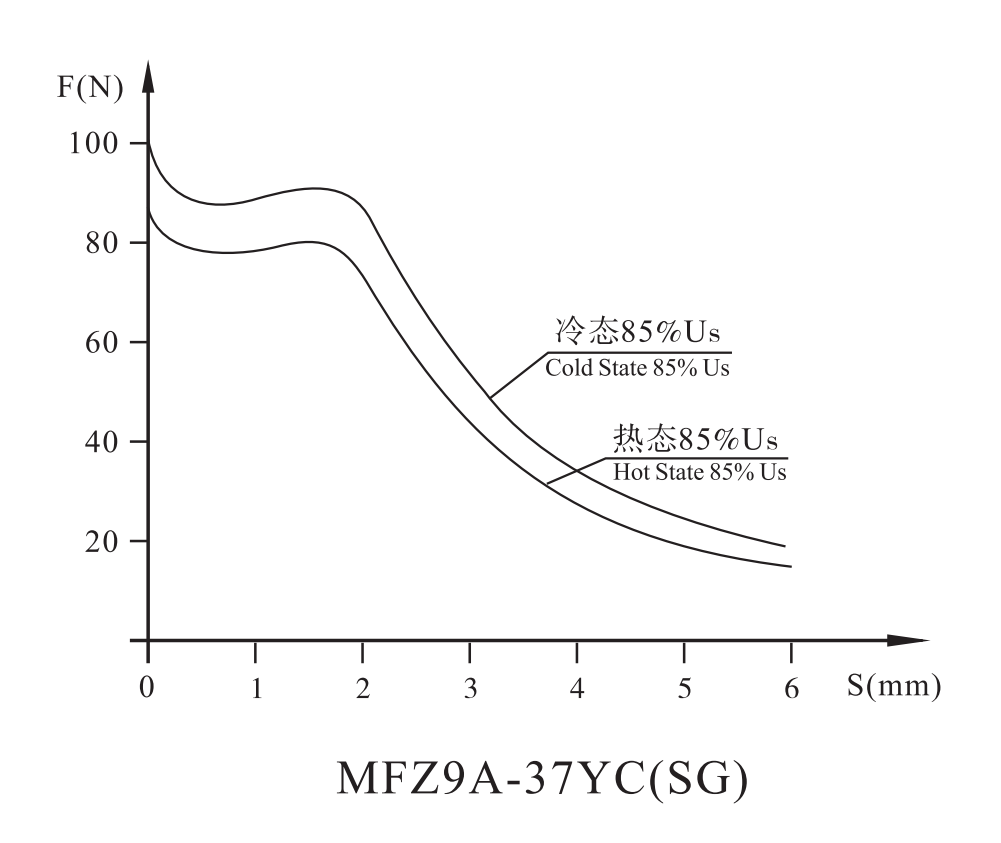

Stroke force characteristic curve
MFZ9A-37YC(SG)Solenoid for screw connected valve

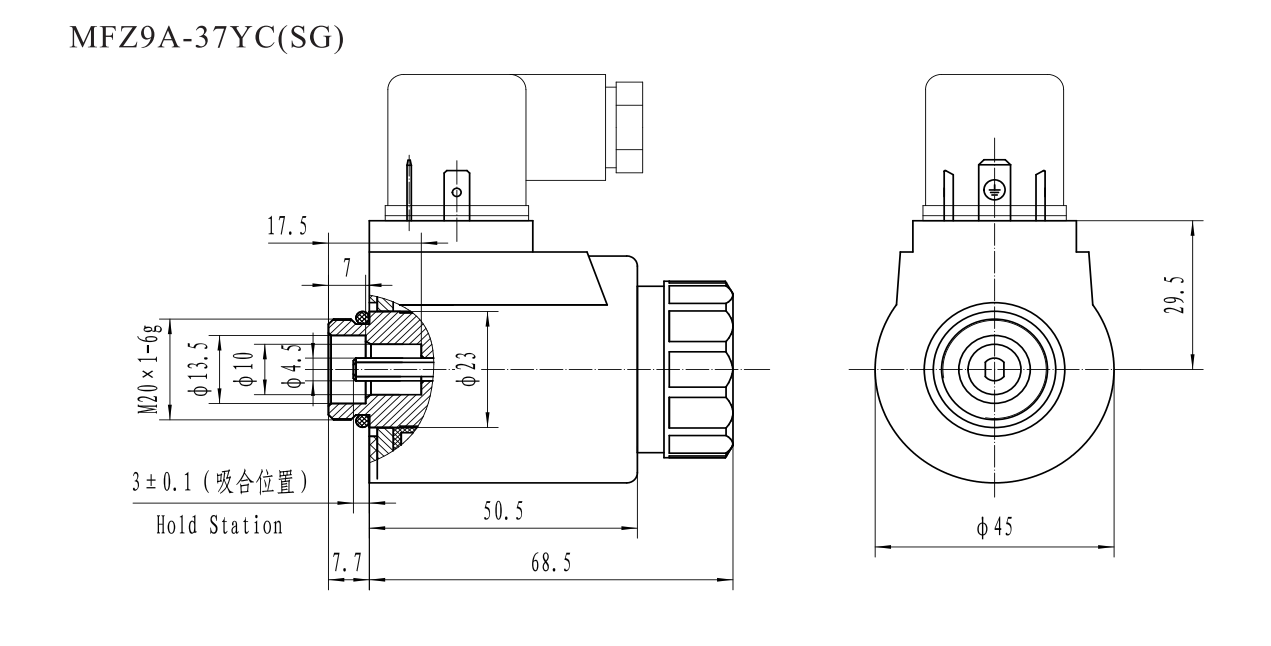

Outline and installation dimensions
MFZ9A-37YC(SG)Solenoid for screw connected valve
